24° Straight Male Stud Fitting Type FI-GE-...-U Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	ISO 11926-2/-3
Description	24° Straight Male Stud Fitting Type FI-GE-...-U Series L / S
Part number	FI-GE-06L7/16U-B-W3-MS
Mass	3.3 kg

CAD models

Request for quotation

Product selection

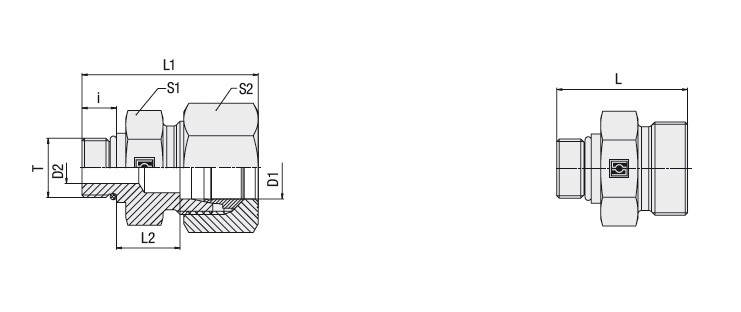

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	Thread T (mm)	D2 (mm)	i (mm)	L (mm)	L1 (mm)	L2 (mm)	S1 (mm)	S2 (mm)	Torque ca. Thread T (N.m)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	L	6	400	7/16-20 UNF	4	9	26	34	10	17	14	18	3.3	FI-GE-06L7/16U-B-W3-MS
2	2	L	6	400	9/16-18 UNF	4	10	27	35	10	19	14	30	3.9	FI-GE-06L9/16U-B-W3-MS
3	3	L	8	400	7/16-20 UNF	6	9	26	34	10	17	17	18	3.9	FI-GE-08L7/16U-B-W3-MS
4	4	L	8	400	9/16-18 UNF	6	10	27	35	10	19	17	30	4.7	FI-GE-08L9/16U-B-W3-MS
5	5	L	10	400	7/16-20 UNF	4	9	27	35	11	17	19	18	4.6	FI-GE-10L7/16U-B-W3-MS
6	6	L	10	400	9/16-18 UNF	7	10	28	36	11	19	19	30	5.2	FI-GE-10L9/16U-B-W3-MS
7	7	L	10	400	3/4-16 UNF	8	11	31	39	13	24	19	50	7.7	FI-GE-10L3/4U-B-W3-MS
8	8	L	12	400	9/16-18 UNF	7	10	28	36	11	19	22	30	6.3	FI-GE-12L9/16U-B-W3-MS
9	9	L	12	400	3/4-16 UNF	10	11	31	39	13	24	22	50	8.2	FI-GE-12L3/4U-B-W3-MS
10	10	L	12	400	7/8-14 UNF	10	12.7	34	42	14.3	27	22	60	10.9	FI-GE-12L7/8U-B-W3-MS
11	11	L	15	400	3/4-16 UNF	11	11	32	40	14	24	27	50	10.8	FI-GE-15L3/4U-B-W3-MS
12	12	L	15	400	7/8-14 UNF	12	12.7	34.7	42.7	15	27	27	60	12.7	FI-GE-15L7/8U-B-W3-MS
13	13	L	18	400	3/4-16 UNF	11	11	33	42	14.5	27	32	50	14.4	FI-GE-18L3/4U-B-W3-MS
14	14	L	18	400	7/8-14 UNF	14	12.7	34.7	43.7	14.5	27	32	60	15.5	FI-GE-18L7/8U-B-W3-MS
15	15	L	22	250	7/8-14 UNF	14	12.7	37	46	16.8	32	36	60	19.8	FI-GE-22L7/8U-B-W3-MS
16	16	L	22	250	1 1/16-12 UN	18	15	39	48	16.5	32	36	95	21.6	FI-GE-22L1-1/16U-B-W3-MS
17	17	L	22	250	1 5/16-12 UN	19	15	40	49	17.5	41	36	150	28.1	FI-GE-22L1-5/16U-B-W3-MS
18	18	L	28	250	7/8-14 UNF	24	12.7	37.7	45.7	17.5	41	41	60	30.5	FI-GE-28L7/8U-B-W3-MS
19	19	L	28	250	1 1/16-12 UN	18	15	40	49	17.5	41	41	95	32.7	FI-GE-28L1-1/16U-B-W3-MS
20	20	L	28	250	1 5/16-12 UN	19	15	40	49	17.5	41	41	150	34.4	FI-GE-28L1-5/16U-B-W3-MS
21	21	L	35	250	1 5/16-12 UN	22	15	43	54	17.5	46	50	150	46.7	FI-GE-35L1-5/16U-B-W3-MS
22	22	L	35	250	1 5/8-12 UN	30	15	43	54	17.5	50	50	200	52.1	FI-GE-35L1-5/8U-B-W3-MS
23	23	L	42	250	1 5/8-12 UN	30	15	45	57	19	55	60	200	61.3	FI-GE-42L1-5/8U-B-W3-MS
24	24	S	8	630	7/16-20 UNF	4.5	9	29	38	13	17	19	20	5.3	FI-GE-08S7/16U-B-W3-MS
25	25	S	10	630	9/16-18 UNF	5	10	32	41	14.5	19	22	35	7.5	FI-GE-10S9/16U-B-W3-MS
26	26	S	12	630	9/16-18 UNF	7.5	12	36	45	16.5	24	24	35	10.3	FI-GE-12S9/16U-B-W3-MS
27	27	S	12	630	3/4-16 UNF	8	11	36	45	17.5	24	24	70	11.3	FI-GE-12S3/4U-B-W3-MS
28	28	S	16	630	3/4-16 UNF	8	11	35	45	15.5	24	30	70	14.6	FI-GE-16S3/4U-B-W3-MS
29	29	S	16	630	7/8-14 UNF	12	12.7	39.7	49.7	18.5	27	30	100	17.4	FI-GE-16S7/8U-B-W3-MS
30	30	S	20	400	3/4-16 UNF	8	11	42	53	20.5	32	36	70	24.4	FI-GE-20S3/4U-B-W3-MS
31	31	S	20	400	7/8-14 UNF	12	12.7	44	55	20.8	32	36	100	26.7	FI-GE-20S7/8U-B-W3-MS
32	32	S	20	400	1 1/16-12 UN	16	15	46	57	20.5	32	36	170	27.3	FI-GE-20S1-1/16U-B-W3-MS
33	33	S	25	400	1 1/16-12 UN	16	15	50	62	23	36	46	170	42.7	FI-GE-25S1-1/16U-B-W3-MS
34	34	S	25	400	1 5/16-12 UN	20	15	50	62	23	41	46	270	47.5	FI-GE-25S1-5/16U-B-W3-MS
35	35	S	30	400	1 5/16-12 UN	20	15	52	65	23.5	46	50	270	54.9	FI-GE-30S1-5/16U-B-W3-MS
36	36	S	30	400	1 5/8-12 UN	25	15	52	65	23.5	50	50	285	62.6	FI-GE-30S1-5/8U-B-W3-MS
37	37	S	38	315	1 5/8-12 UN	25	15	57	72	22.5	55	60	285	89.4	FI-GE-38S1-5/8U-B-W3-MS
