24° Straight Male Stud Fitting Type FI-GE-...-N Series LL / L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Standard	ANSI/ASME B1.20.1-1983
Description	24° Straight Male Stud Fitting Type FI-GE-...-N Series LL / L / S
Part number	FI-GE-04LL1/8N-W3-MS
Mass	1.5 kg

CAD models

Request for quotation

Product selection

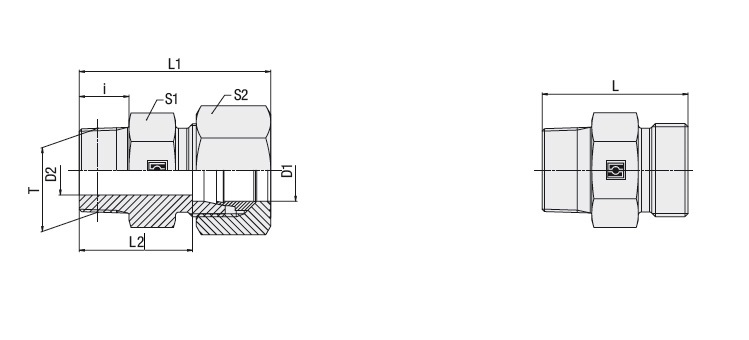

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	Thread T (mm)	D2 (mm)	i (mm)	L (mm)	L1 (mm)	L2 (mm)	S1 (mm)	S2 (mm)	Torque ca. Thread T (N.m)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	LL	4	100	1/8 NPT	3	10	22	28	18	11	10	15	1.5	FI-GE-04LL1/8N-W3-MS
2	2	LL	6	100	1/8 NPT	4.5	10	22	28	16.5	11	12	15	1.6	FI-GE-06LL1/8N-W3-MS
3	3	LL	8	100	1/8 NPT	5	10	24	30	18.5	12	14	15	2.1	FI-GE-08LL1/8N-W3-MS
4	4	L	6	315	1/8 NPT	4	10	24	32	17	12	14	15	2.5	FI-GE-06L1/8N-W3-MS
5	5	L	6	315	1/4 NPT	4	15.5	30	38	23	17	14	35	4	FI-GE-06L1/4N-W3-MS
6	6	L	6	315	3/8 NPT	4	15.5	31	39	24	19	14	55	5.5	FI-GE-06L3/8N-W3-MS
7	7	L	6	315	1/2 NPT	4	20	36	44	29	22	14	110	9.1	FI-GE-06L1/2N-W3-MS
8	8	L	8	315	1/8 NPT	4	10	25	33	18	14	17	15	3.4	FI-GE-08L1/8N-W3-MS
9	9	L	8	315	1/4 NPT	6	15	30	38	23	17	17	35	4.5	FI-GE-08L1/4N-W3-MS
10	10	L	8	315	3/8 NPT	6	15.5	30	38	23	19	17	55	5.5	FI-GE-08L3/8N-W3-MS
11	11	L	8	315	1/2 NPT	6	20	36	44	29	22	17	110	9.5	FI-GE-08L1/2N-W3-MS
12	12	L	10	315	1/8 NPT	4	10	25	33	18	17	19	15	4.2	FI-GE-10L1/8N-W3-MS
13	13	L	10	315	1/4 NPT	7	15	31	39	24	17	19	35	5	FI-GE-10L1/4N-W3-MS
14	14	L	10	315	3/8 NPT	7	15	32	40	25	19	19	55	6.4	FI-GE-10L3/8N-W3-MS
15	15	L	10	315	1/2 NPT	7	20	37	45	30	22	19	110	9.6	FI-GE-10L1/2N-W3-MS
16	16	L	10	315	3/4 NPT	8	20	38	46	31	30	19	175	13.3	FI-GE-10L3/4N-W3-MS
17	17	L	12	315	1/8 NPT	4	10	26	34	19	19	22	15	5.6	FI-GE-12L1/8N-W3-MS
18	18	L	12	315	1/4 NPT	7	15	32	40	25	19	22	35	6.4	FI-GE-12L1/4N-W3-MS
19	19	L	12	315	3/8 NPT	8	15	32	40	25	19	22	55	7.2	FI-GE-12L3/8N-W3-MS
20	20	L	12	315	1/2 NPT	10	20	37	45	30	24	22	110	10.1	FI-GE-12L1/2N-W3-MS
21	21	L	12	315	3/4 NPT	8	20	38	46	31	27	22	175	13.7	FI-GE-12L3/4N-W3-MS
22	22	L	15	315	1/4 NPT	7	15.5	33	41	26	24	27	35	9.7	FI-GE-15L1/4N-W3-MS
23	23	L	15	315	3/8 NPT	11	15.5	38	46	31	24	27	55	10.2	FI-GE-15L3/8N-W3-MS
24	24	L	15	315	1/2 NPT	12	20	38	46	31	24	27	110	11.9	FI-GE-15L1/2N-W3-MS
25	25	L	15	315	3/4 NPT	12	20	40	48	33	30	27	175	15.2	FI-GE-15L3/4N-W3-MS
26	26	L	18	315	3/8 NPT	8	15.5	34	43	26.5	27	32	55	14.2	FI-GE-18L3/8N-W3-MS
27	27	L	18	315	1/2 NPT	12	20	39	48	31.5	27	32	110	15.9	FI-GE-18L1/2N-W3-MS
28	28	L	18	315	3/4 NPT	15	20	39	48	31.5	30	32	175	18.3	FI-GE-18L3/4N-W3-MS
29	29	L	18	315	1 NPT	15	25	45	54	37.5	36	32	265	26.7	FI-GE-18L1N-W3-MS
30	30	L	22	160	1/2 NPT	14	20	41	50	33.5	32	36	110	19.4	FI-GE-22L1/2N-W3-MS
31	31	L	22	160	3/4 NPT	16	20	41	50	33.5	32	36	175	21.5	FI-GE-22L3/4N-W3-MS
32	32	L	22	160	1 NPT	19	25	47	56	39.5	36	36	265	29.1	FI-GE-22L1N-W3-MS
33	33	L	28	160	3/4 NPT	18	20	42	51	34.5	41	41	175	31.7	FI-GE-28L3/4N-W3-MS
34	34	L	28	160	1 NPT	21	25	47	56	39.5	41	41	265	37.8	FI-GE-28L1N-W3-MS
35	35	L	28	160	1 1/4 NPT	24	26	49	58	41.5	46	41	315	48.4	FI-GE-28L1-1/4N-W3-MS
36	36	L	35	160	1 1/4 NPT	28	26	51	62	40.5	46	50	315	54.3	FI-GE-35L1-1/4N-W3-MS
37	37	L	42	160	1 1/4 NPT	28	26	53	65	42	55	60	315	62.9	FI-GE-42L1-1/4N-W3-MS
38	38	L	42	160	1 1/2 NPT	36	26	53	65	42	55	60	385	63.5	FI-GE-42L1-1/2N-W3-MS
39	39	S	6	630	1/8 NPT	4	10	28	36	21	14	17	15	4.2	FI-GE-06S1/8N-W3-MS
40	40	S	6	630	1/4 NPT	4	15	35	43	28	17	17	35	5.9	FI-GE-06S1/4N-W3-MS
41	41	S	6	630	3/8 NPT	4	15.5	33	41	26	19	17	55	6.8	FI-GE-06S3/8N-W3-MS
42	42	S	8	630	1/8 NPT	4	10	29.5	37.5	22.5	17	19	15	5.4	FI-GE-08S1/8N-W3-MS
43	43	S	8	630	1/4 NPT	5	15	35	43	28	17	19	35	6.2	FI-GE-08S1/4N-W3-MS
44	44	S	8	630	3/8 NPT	5	15.5	36	44	29	19	19	55	9.7	FI-GE-08S3/8N-W3-MS
45	45	S	8	630	1/2 NPT	5	20	40	48	33	22	19	110	11.1	FI-GE-08S1/2N-W3-MS
46	46	S	10	630	1/4 NPT	5	15	35	44	27.5	19	22	35	8.1	FI-GE-10S1/4N-W3-MS
47	47	S	10	630	3/8 NPT	7	15	35	44	27.5	19	22	55	8.7	FI-GE-10S3/8N-W3-MS
48	48	S	10	630	1/2 NPT	7	20	38	47	30.5	22	22	110	11.4	FI-GE-10S1/2N-W3-MS
49	49	S	12	630	1/4 NPT	5	15.5	37	46	29.5	22	24	35	10	FI-GE-12S1/4N-W3-MS
50	50	S	12	630	3/8 NPT	8	15	37	46	29.5	22	24	55	10.5	FI-GE-12S3/8N-W3-MS
51	51	S	12	630	1/2 NPT	8	20	42	51	34.5	22	24	110	13.1	FI-GE-12S1/2N-W3-MS
52	52	S	12	630	3/4 NPT	8	20	44	53	36.5	30	24	175	16.1	FI-GE-12S3/4N-W3-MS
53	53	S	14	630	3/8 NPT	8	15.5	39	49	31	24	27	55	13.7	FI-GE-14S3/8N-W3-MS
54	54	S	14	630	1/2 NPT	10	20	44	54	36	24	27	110	15.8	FI-GE-14S1/2N-W3-MS
55	55	S	16	630	3/8 NPT	8	15	39	49	30.5	27	30	55	16.5	FI-GE-16S3/8N-W3-MS
56	56	S	16	630	1/2 NPT	12	20	44	54	35.5	27	30	110	17.1	FI-GE-16S1/2N-W3-MS
57	57	S	16	630	3/4 NPT	12	20	45	55	36.5	30	30	175	21.3	FI-GE-16S3/4N-W3-MS
58	58	S	20	400	1/2 NPT	12	20	48	59	37.5	32	36	110	26.9	FI-GE-20S1/2N-W3-MS
59	59	S	20	400	3/4 NPT	16	22	48	59	37.5	32	36	175	28.1	FI-GE-20S3/4N-W3-MS
60	60	S	20	400	1 NPT	16	25	55	66	44.5	36	36	265	39.1	FI-GE-20S1N-W3-MS-MS
61	61	S	25	400	1/2 NPT	20	25	57	59	45	41	46	110	51.9	FI-GE-25S1/2N-W3-MS
62	62	S	25	400	3/4 NPT	16	20	52	64	40	41	46	175	47.1	FI-GE-25S3/4N-W3-MS
63	63	S	25	400	1 NPT	20	25	57	69	45	41	46	265	45.8	FI-GE-25S1N-W3-MS
64	64	S	25	400	1 1/4 NPT	20	26	58	70	46	46	46	315	67.2	FI-GE-25S1-1/4N-W3-MS
65	65	S	30	400	1 NPT	20	25	59	72	45.5	46	50	265	61.5	FI-GE-30S1N-W3-MS
66	66	S	30	400	1 1/4 NPT	25	26	60	73	46.5	46	50	315	67	FI-GE-30S1-1/4N-W3-MS
67	67	S	30	400	1 1/2 NPT	25	26	60	73	46.5	50	50	385	79.1	FI-GE-30S1-1/2N-W3-MS
68	68	S	38	400	1 1/4 NPT	25	26	65	80	49	55	60	315	92.1	FI-GE-38S1-1/4N-W3-MS
69	69	S	38	400	1 1/2 NPT	32	26	65	80	49	55	60	385	95.6	FI-GE-38S1-1/2N-W3-MS
