24° Straight Female Stud Fitting Type FI-GA-...-R Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Straight Female Stud Fitting Type FI-GA-...-R Series L / S
Part number	FI-GA-06LR-W3-MS
Mass	3.2 kg

CAD models

Request for quotation

Product selection

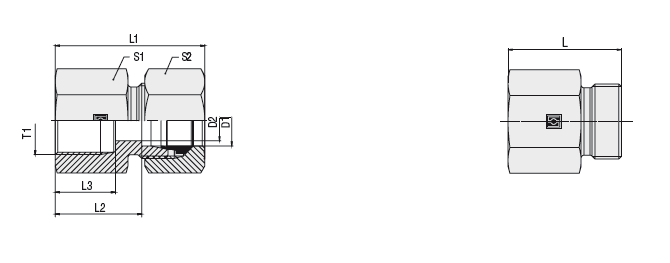

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	Thread T1	D2 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	S1 (mm)	S2 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with lock nut, cutting rings & union nuts
1	1	L	6	315	G 1/8	4	26	34	19	12	14	14	3.2	FI-GA-06LR-W3-MS
2	2	L	6	315	G 1/4	4	31	39	24	18	19	14	5.3	FI-GA-06LR1/4-W3-MS
3	3	L	8	315	G 1/4	6	31	39	24	17	19	17	6	FI-GA-08LR-W3-MS
4	4	L	8	315	G 3/8	6	31	39	24	16	24	17	8.4	FI-GA-08LR3/8-W3-MS
5	5	L	8	315	G 1/2	6	36	44	29	20	27	17	11	FI-GA-08LR1/2-W3-MS
6	6	L	10	315	G 1/4	8	32	40	25	17	19	19	6.1	FI-GA-10LR-W3-MS
7	7	L	10	315	G 3/8	8	32	40	25	16	24	19	8.9	FI-GA-10LR3/8-W3-MS
8	8	L	10	315	G 1/2	8	37	45	30	20	27	19	11	FI-GA-10LR1/2-W3-MS
9	9	L	12	315	G 1/4	8	33	41	26	17	19	22	7.8	FI-GA-12LR1/4-W3-MS
10	10	L	12	315	G 3/8	10	33	41	26	17	24	22	9.9	FI-GA-12LR-W3-MS
11	11	L	12	315	G 1/2	10	37	45	30	20	27	22	10.3	FI-GA-12LR1/2-W3-MS
12	12	L	15	315	G 1/2	12	38	46	31	20	27	27	14.6	FI-GA-15LR-W3-MS
13	13	L	18	315	G 3/8	15	34	43	26.5	20	27	32	16.2	FI-GA-18LR3/8-W3-MS
14	14	L	18	315	G 1/2	15	38	47	30.5	20	27	32	16.8	FI-GA-18LR-W3-MS
15	15	L	22	160	G 3/4	19	43	52	35.5	22	36	36	28.1	FI-GA-22LR-W3-MS
16	16	L	28	160	G 1	24	45.5	54.5	38	24.5	41	41	38.8	FI-GA-28LR-W3-MS
17	17	L	35	160	G 1 1/4	30	51.5	62.5	41	26.5	55	50	70.8	FI-GA-35LR-W3-MS
18	18	L	42	160	G 1 1/2	36	53.5	65.5	42.5	28.5	60	60	80.1	FI-GA-42LR-W3-MS
19	19	S	6	630	G 1/4	4	33	41	26	17	19	17	6.7	FI-GA-06SR-W3-MS
20	20	S	8	630	G 1/4	5	33	41	26	17	19	19	7.3	FI-GA-08SR-W3-MS
21	21	S	10	630	G 3/8	7	34	43	26.5	17	24	22	11	FI-GA-10SR-W3-MS
22	22	S	12	630	G 3/8	8	34	43	26.5	17	24	24	11.7	FI-GA-12SR-W3-MS
23	23	S	12	630	G 1/2	8	38	47	30.5	20	27	24	13.7	FI-GA-12SR1/2-W3-MS
24	24	S	14	630	G 1/2	10	40	50	32	20	27	27	17.1	FI-GA-14SR-W3-MS
25	25	S	16	630	G 1/2	12	40	50	31.5	20	27	30	18.5	FI-GA-16SR-W3-MS
26	26	S	20	400	G 3/4	16	45	56	34.5	22	36	36	33.3	FI-GA-20SR-W3-MS
27	27	S	25	400	G 1	20	49.5	61.5	37.5	24.5	41	46	70.1	FI-GA-25SR-W3-MS
28	28	S	30	400	G 1 1/4	25	55.5	68.5	42	26.5	55	50	78.4	FI-GA-30SR-W3-MS
29	29	S	38	400	G 1 1/2	32	59.5	74.5	43.5	28.5	60	60	100.6	FI-GA-38SR-W3-MS
