24° Elbow Bulkhead Fitting Type FI-WS Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Elbow Bulkhead Fitting Type FI-WS Series L / S
Part number	FI-WS-06L-W3-SKM-MS
Mass	7.8 kg

CAD models

Product selection

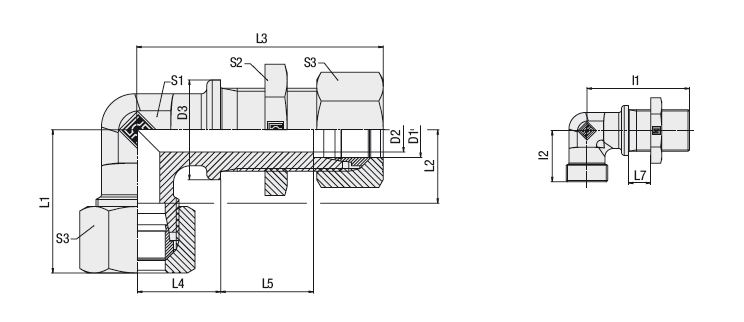

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	D2 (mm)	D3 (mm)	l1 (mm)	l2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	L7 min (mm)	L7 max (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with lock nut, cutting rings & union nuts
1	1	L	6	500	4	17	48	19	27	12	56	14	27	3	16	12	17	14	7.8	FI-WS-06L-W3-SKM-MS
2	2	L	8	500	6	19	51	21	29	14	59	17	27	3	16	12	19	17	10.2	FI-WS-08L-W3-SKM-MS
3	3	L	10	500	8	22	53	22	30	15	61	18	28	3	16	14	22	19	12.9	FI-WS-10L-W3-SKM-MS
4	4	L	12	400	10	24	56	24	32	17	64	20	29	3	16	17	24	22	16.8	FI-WS-12L-W3-SKM-MS
5	5	L	15	400	12	27	61	28	36	21	69	23	31	3	16	19	30	27	27.3	FI-WS-15L-W3-SKM-MS
6	6	L	18	400	15	32	64	31	40	23.5	73	24	32.5	3	16	24	36	32	38.8	FI-WS-18L-W3-SKM-MS
7	7	L	22	250	19	36	72	35	44	27.5	81	30	34.5	4	16	27	41	36	51.2	FI-WS-22L-W3-SKM-MS
8	8	L	28	250	24	42	77	38	47	30.5	86	34	35.5	4	16	36	46	41	80.9	FI-WS-28L-W3-SKM-MS
9	9	L	35	250	30	50	86	45	56	34.5	97	39	36.5	4	16	41	55	50	121.3	FI-WS-35L-W3-SKM-MS
10	10	L	42	250	36	60	90	51	63	40	102	43	36	4	16	50	65	60	160.7	FI-WS-42L-W3-SKM-MS
11	11	S	6	800	4	19	53	23	31	16	61	17	29	3	16	12	19	17	12.1	FI-WS-06S-W3-SKM-MS
12	12	S	8	800	5	22	54	24	32	17	62	18	29	3	16	14	22	19	15.5	FI-WS-08S-W3-SKM-MS
13	13	S	10	800	7	24	57	25	34	17.5	66	20	29.5	3	16	17	24	22	20.2	FI-WS-10S-W3-SKM-MS
14	14	S	12	630	8	27	59	29	38	21.5	68	21	30.5	3	16	17	27	24	24.8	FI-WS-12S-W3-SKM-MS
15	15	S	14	630	10	27	63	30	40	22	73	23	32	3	16	19	30	27	32.5	FI-WS-14S-W3-SKM-MS
16	16	S	16	630	12	30	64	33	43	24.5	74	24	31.5	3	16	24	32	30	40.5	FI-WS-16S-W3-SKM-MS
17	17	S	20	400	16	36	74	37	48	26.5	85	30	33.5	4	16	27	41	36	64.2	FI-WS-20S-W3-SKM-MS
18	18	S	25	400	20	42	81	42	54	30	93	34	35	4	16	36	46	46	108.8	FI-WS-25S-W3-SKM-MS
19	19	S	30	400	25	50	90	49	62	35.5	103	39	37.5	4	16	41	50	50	143.3	FI-WS-30S-W3-SKM-MS
20	20	S	38	400	32	60	96	57	72	41	112	43	37	4	16	50	65	60	215.4	FI-WS-38S-W3-SKM-MS
