24° Adjustable Standpipe Branch Tee Type FI-ET Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Adjustable Standpipe Branch Tee Type FI-ET Series L / S
Part number	FI-ET-06L-W3-MS+SV
Mass	6.4 kg

CAD models

Product selection

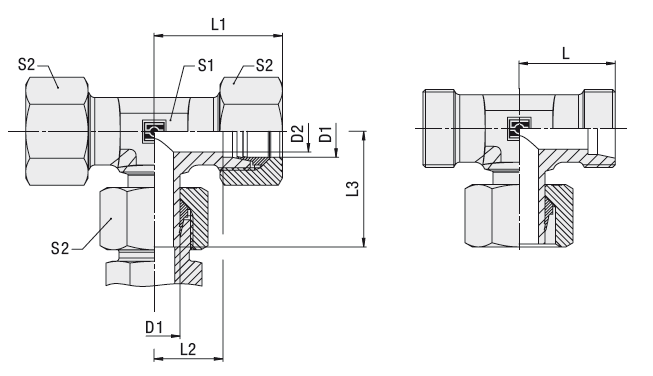

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	D2 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	S1 (mm)	S2 (mm)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied/assembled with cutting rings & union nuts on all ends
1	1	L	6	315	4	19	27	12	26	12	14	6.4	FI-ET-06L-W3-MS+SV
2	2	L	8	315	6	21	29	14	27.5	12	17	8.5	FI-ET-08L-W3-MS+SV
3	3	L	10	315	8	22	30	15	29	14	19	10.6	FI-ET-10L-W3-MS+SV
4	4	L	12	315	10	24	32	17	29.5	17	22	14.7	FI-ET-12L-W3-MS+SV
5	5	L	15	315	12	28	36	21	32.5	19	27	24.3	FI-ET-15L-W3-MS+SV
6	6	L	18	315	15	31	40	23.5	35.5	24	32	35.1	FI-ET-18L-W3-MS+SV
7	7	L	22	160	19	35	44	27.5	38.5	27	36	47.1	FI-ET-22L-W3-MS+SV
8	8	L	28	160	24	38	47	30.5	41.5	36	41	78.2	FI-ET-28L-W3-MS+SV
9	9	L	35	160	30	45	56	34.5	51	41	50	119	FI-ET-35L-W3-MS+SV
10	10	L	42	160	36	51	63	40	56	50	60	163.1	FI-ET-42L-W3-MS+SV
11	11	S	6	630	4	23	31	16	27	12	17	10.3	FI-ET-06S-W3-MS+SV
12	12	S	8	630	5	24	32	17	27.5	14	19	12.7	FI-ET-08S-W3-MS+SV
13	13	S	10	630	7	25	34	17.5	30	17	22	17.7	FI-ET-10S-W3-MS+SV
14	14	S	12	630	8	29	38	21.5	31	17	24	21.5	FI-ET-12S-W3-MS+SV
15	15	S	14	400	10	30	40	22	35	19	27	30.4	FI-ET-14S-W3-MS+SV
16	16	S	16	400	12	33	43	24.5	36.5	24	30	39.6	FI-ET-16S-W3-MS+SV
17	17	S	20	400	16	37	48	26.5	44.5	27	36	60.5	FI-ET-20S-W3-MS+SV
18	18	S	25	400	20	42	54	30	50	36	46	110.1	FI-ET-25S-W3-MS+SV
19	19	S	30	400	25	49	62	35.5	55	41	50	142.6	FI-ET-30S-W3-MS+SV
20	20	S	38	315	32	57	72	41	63	50	60	224.3	FI-ET-38S-W3-MS+SV
