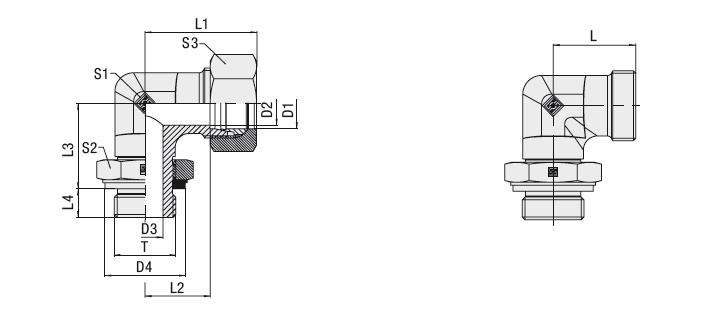

24° Adjustable Male Stud Elbow (90°) with Lock Nut Type FI-WEE-...-R-OK Series L / S

Manufacturer	Walter Stauffenberg GmbH & Co. KG
Description	24° Adjustable Male Stud Elbow (90°) with Lock Nut Type FI-WEE-...-R-OK Series L / S
Part number	FI-WEE-06LR-OK-B-W3-MS
Mass	5.1 kg

CAD models

Request for quotation

Product selection

Index	Selector	Series	Tube OD D1 (mm)	PN (bar)	Thread T	D2 (mm)	D3 (mm)	D4 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	S1 (mm)	S2 (mm)	S3 (mm)	Torque for thread T (N.m)	Weight ca. per 100 (kg)	Ordering Codes - Fitting body supplied with cutting ring & union nut
1	1	L	6	315	G 1/8	4	4.5	15	21	29	14	19	7	14	14	14	25	5.1	FI-WEE-06LR-OK-B-W3-MS
2	2	L	8	315	G 1/4	6	7.5	20	23	31	16	23	9	14	19	17	50	7.6	FI-WEE-08LR-OK-B-W3-MS
3	3	L	10	315	G 1/4	8	7.5	20	24	32	17	25	9	19	19	19	50	10.3	FI-WEE-10LR-OK-B-W3-MS
4	4	L	12	250	G 3/8	10	10	23	26	34	19	28	9	19	22	22	80	12.5	FI-WEE-12LR-OK-B-W3-MS
5	5	L	15	250	G 1/2	12	12.5	28	28	36	21	30	13	22	27	27	105	19.5	FI-WEE-15LR-OK-B-W3-MS
6	6	L	18	250	G 1/2	15	12.5	28	31	40	24	36	13	27	27	32	105	28.8	FI-WEE-18LR-OK-B-W3-MS
7	7	L	22	160	G 3/4	19	15.5	33	35	44	28	36	13	30	36	36	220	40	FI-WEE-22LR-OK-B-W3-MS
8	8	L	28	160	G 1	24	21.5	41	38	47	31	44	15	36	41	41	370	60.9	FI-WEE-28LR-OK-B-W3-MS
9	9	L	35	160	G 1 1/4	30	27.5	51	48	59	38	50	15	50	50	50	500	126.4	FI-WEE-35LR-OK-B-W3-MS
10	10	L	42	160	G 1 1/2	36	33	56	49	61	38	52	15	50	55	60	600	124	FI-WEE-42LR-OK-B-W3-MS
11	11	S	6	315	G 1/4	4	7.5	20	22	30	15	23	9	14	19	17	50	7.4	FI-WEE-06SR-OK-B-W3-MS
12	12	S	8	315	G 1/4	5	7.5	20	24	32	17	27	9	19	19	19	50	11	FI-WEE-08SR-OK-B-W3-MS
13	13	S	10	250	G 3/8	7	10	23	25	34	18	29	9	19	22	22	80	13.1	FI-WEE-10SR-OK-B-W3-MS
14	14	S	12	250	G 3/8	8	10	23	29	38	22	29	9	22	22	24	80	16.6	FI-WEE-12SR-OK-B-W3-MS
15	15	S	16	250	G 1/2	12	12.5	28	33	43	25	36	13	27	27	30	105	30.6	FI-WEE-16SR-OK-B-W3-MS
16	16	S	20	250	G 3/4	16	15.5	33	38	49	28	39	12	30	36	36	220	45.8	FI-WEE-20SR-OK-B-W3-MS
17	17	S	25	250	G 1	20	21.5	41	42	54	30	44	14	36	41	46	370	74.6	FI-WEE-25SR-OK-B-W3-MS
18	18	S	30	160	G 1 1/4	25	27.5	51	49	62	36	49	15	50	50	50	500	132.2	FI-WEE-30SR-OK-B-W3-MS
19	19	S	38	160	G 1 1/2	32	33	56	50	65	34	55	15	50	55	60	600	145.6	FI-WEE-38SR-OK-B-W3-MS
