Tapper minivalves

Functions 2/2, 3/2 - N.O. and N.C. - Push-in fittings for pipe Ø4, M5, G1/8"

Description	Tapper minivalves 2/2 N.O. push-in fittings for pipe Ø4 bottom ported
Type	MHAT4
Weight (g)	50

CAD models

Request for quotation

Product selection

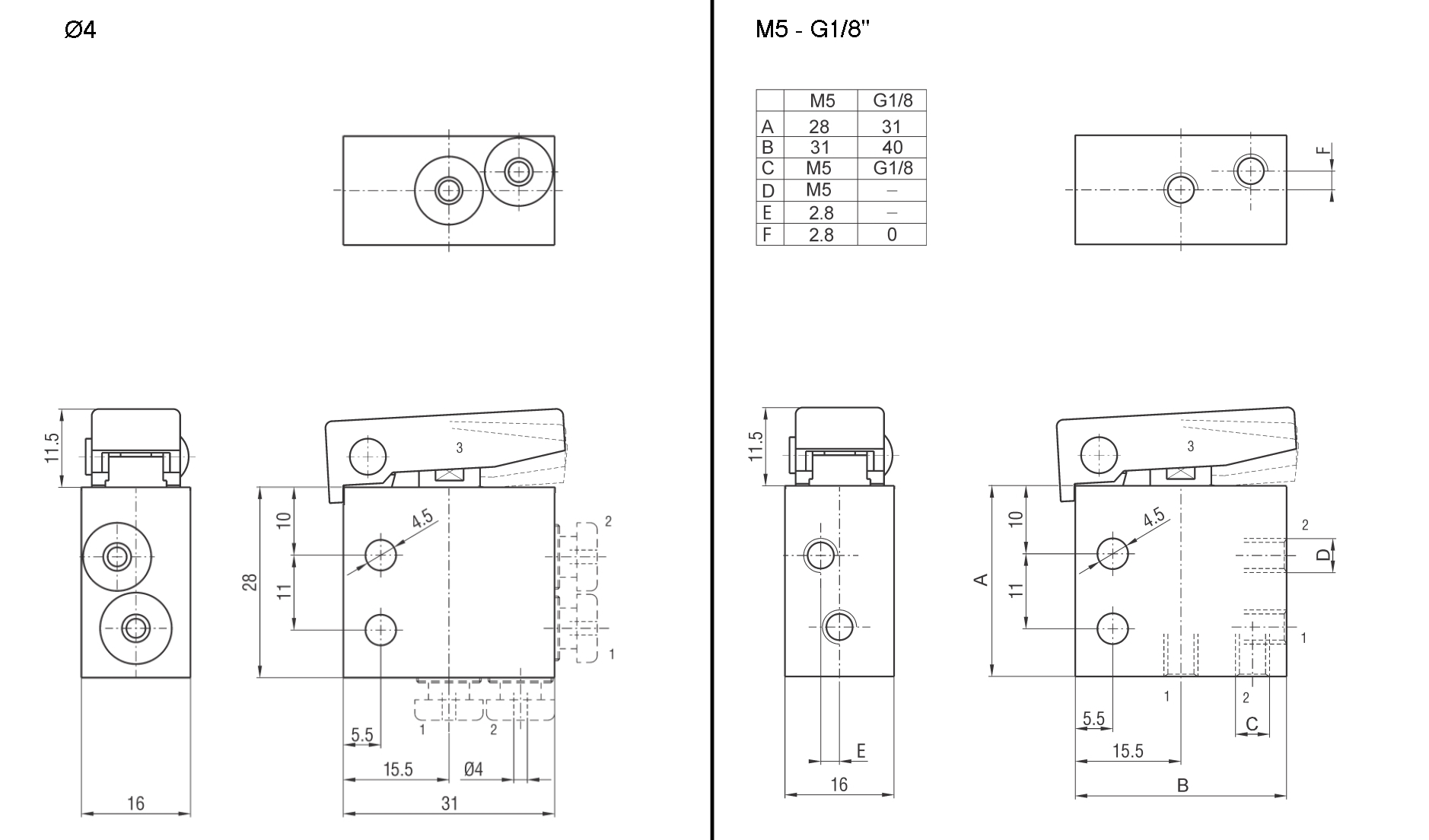

Index	Selector	Type	Function	Pilot	Return	Actuation force at 6 bar (N)	Flow rate 6 bar Δp=1 (Nl/min)	Port size	Weight (g)	A	B	C	D	E	F
1	1	MHAT4	2/2 N.O.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 bottom ported	50	-	-	-	-	-	-
2	12	MHAT4/L	2/2 N.O.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 side ported	50	-	-	-	-	-	-
3	14	MHATM5	2/2 N.O.	Tapper	Mechanical spring	7	83	M5 bottom ported	50	28	31	M5	M5	2,8	2,8
4	15	MHATM5/L	2/2 N.O.	Tapper	Mechanical spring	7	83	M5 side ported	50	28	31	M5	M5	2,8	2,8
5	16	MHAT1/8	2/2 N.O.	Tapper	Mechanical spring	7	83	G1/8" bottom ported	50	31	40	G1/8"	-	-	0
6	17	MHCT4	2/2 N.C.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 bottom ported	50	-	-	-	-	-	-
7	18	MHCT4/L	2/2 N.C.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 side ported	50	-	-	-	-	-	-
8	19	MHCTM5	2/2 N.C.	Tapper	Mechanical spring	7	83	M5 bottom ported	50	28	31	M5	M5	2,8	2,8
9	20	MHCTM5/L	2/2 N.C.	Tapper	Mechanical spring	7	83	M5 side ported	50	28	31	M5	M5	2,8	2,8
10	2	MHCT1/8	2/2 N.C.	Tapper	Mechanical spring	7	83	G1/8" bottom ported	50	31	40	G1/8"	-	-	0
11	3	MAT4	3/2 N.O.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 bottom ported	50	-	-	-	-	-	-
12	4	MAT4/L	3/2 N.O.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 side ported	50	-	-	-	-	-	-
13	5	MATM5	3/2 N.O.	Tapper	Mechanical spring	7	83	M5 bottom ported	50	28	31	M5	M5	2,8	2,8
14	6	MATM5/L	3/2 N.O.	Tapper	Mechanical spring	7	83	M5 side ported	50	28	31	M5	M5	2,8	2,8
15	7	MAT1/8	3/2 N.O.	Tapper	Mechanical spring	7	83	G1/8" bottom ported	50	31	40	G1/8"	-	-	0
16	8	MCT4	3/2 N.C.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 bottom ported	50	-	-	-	-	-	-
17	9	MCT4/L	3/2 N.C.	Tapper	Mechanical spring	7	83	Push-in fittings for pipe Ø4 side ported	50	-	-	-	-	-	-
18	10	MCTM5	3/2 N.C.	Tapper	Mechanical spring	7	83	M5 bottom ported	50	28	31	M5	M5	2,8	2,8
19	11	MCTM5/L	3/2 N.C.	Tapper	Mechanical spring	7	83	M5 side ported	50	28	31	M5	M5	2,8	2,8
20	13	MCT1/8	3/2 N.C.	Tapper	Mechanical spring	7	83	G1/8" bottom ported	50	31	40	G1/8"	-	-	0
