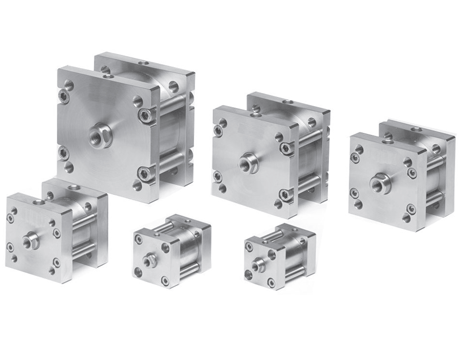

Stainless steel compact cylinders to ISO 21287 standard - ABX Series

Manufacturer	WAIRCOM
Description	Stainless steel compact cylinders to ISO 21287 standard 20/10 DABX7
Part number	20/10 DABX7

CAD models

Product selection

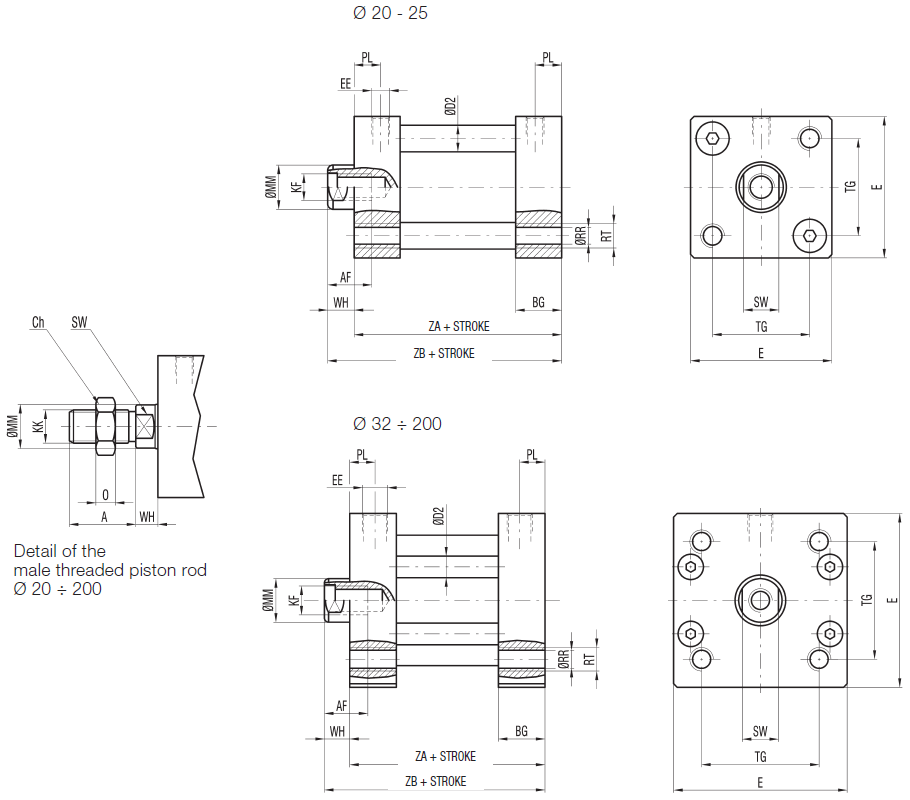

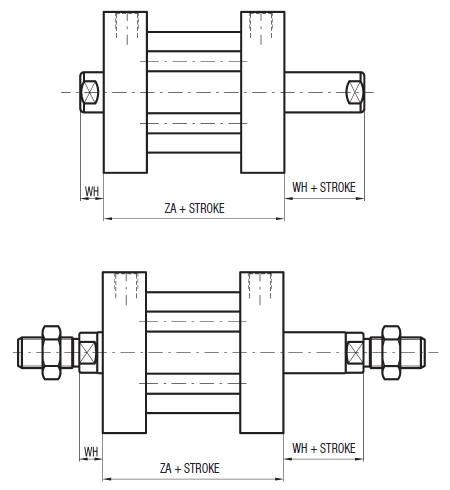

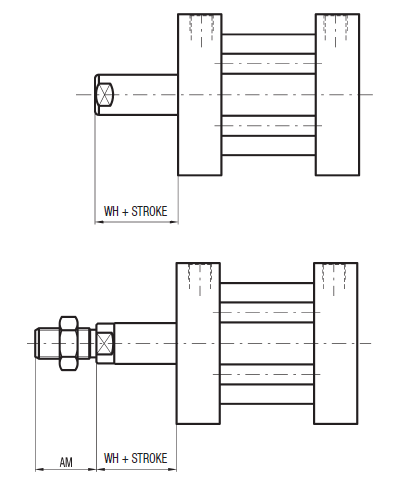

Index	Selector	Ø (mm)	A (mm)	AF (mm)	BG (mm)	CH (mm)	D2 (mm)	DT (mm)	E (mm)	EE	KF	KK	LA (mm)	MM (mm)	O (mm)	PL (mm)	RR (mm)	RT	SW (mm)	TG (mm)	WH (mm)	ZA (mm)	ZB (mm)	WEIGHT A (g)	WEIGHT AF (g)	INCR. x 5 mm (g)
1	13	20	16	10	10.4	13	6	7,5	32	M5	M6	M8	4,5	10	5	6	4.2	M5	8	22	6	37	43	295	289	8
2	14	25	16	10	10.4	13	6	7,5	36	M5	M6	M8	4,5	10	5	6	4.2	M5	8	26	6	39	45	349	343	13.5
3	3	32	19	12	12.9	17	6	-	50	G1/8	M8	M10x1,25	-	12	6	7	5.3	M6	10	32.5	7	44	51	693	674	17.5
4	4	40	19	12	13.2	17	6	-	57	G1/8	M8	M10x1,25	-	12	6	7	5.2	M6	10	38	7	45	52	901	882	19
5	5	50	22	16	13.2	19	6	-	67	G1/8	M10	M12x1,25	-	16	7	7	6.7	M8	13	46.5	8	45	53	1238	1204	27
6	6	63	22	16	13.2	19	7	-	80	G1/8	M10	M12x1,25	-	16	7	7	6.7	M8	13	56.5	8	49	57	1911	1877	38
7	8	80	28	20	13.3	30	8	-	96	G1/8	M12	M12x1,25	-	20	8	7.5	8.5	M10	17	72	10	54	64	2702	2660	57
8	9	100	28	24	17.6	30	10	-	116	G1/8	M12	M16x1,5	-	25	8	9.5	8.5	M10	21	89	10	67	77	4842	4760	72
9	10	125	54	25	22	41	10	-	145	G1/4	M14	M27x2	-	30	12	10	10.2	M12	28	110	10	78	88	8243	7890	97
10	11	160	72	30	26	55	12	-	180	G3/8	M20	M36x2	-	40	14	12	14.2	M16	36	140	12	87	99	16100	15290	147.5
11	12	200	72	30	26	55	12	-	220	G3/8	M20	M36x2	-	40	14	12	14.2	M16	36	175	12	87	99	24250	23440	225
