Size 1 - Solenoid actuated valves

Solenoid actuated valves, 5 ways, interface to ISO 5599/1 standard size 1, monostable and bistable

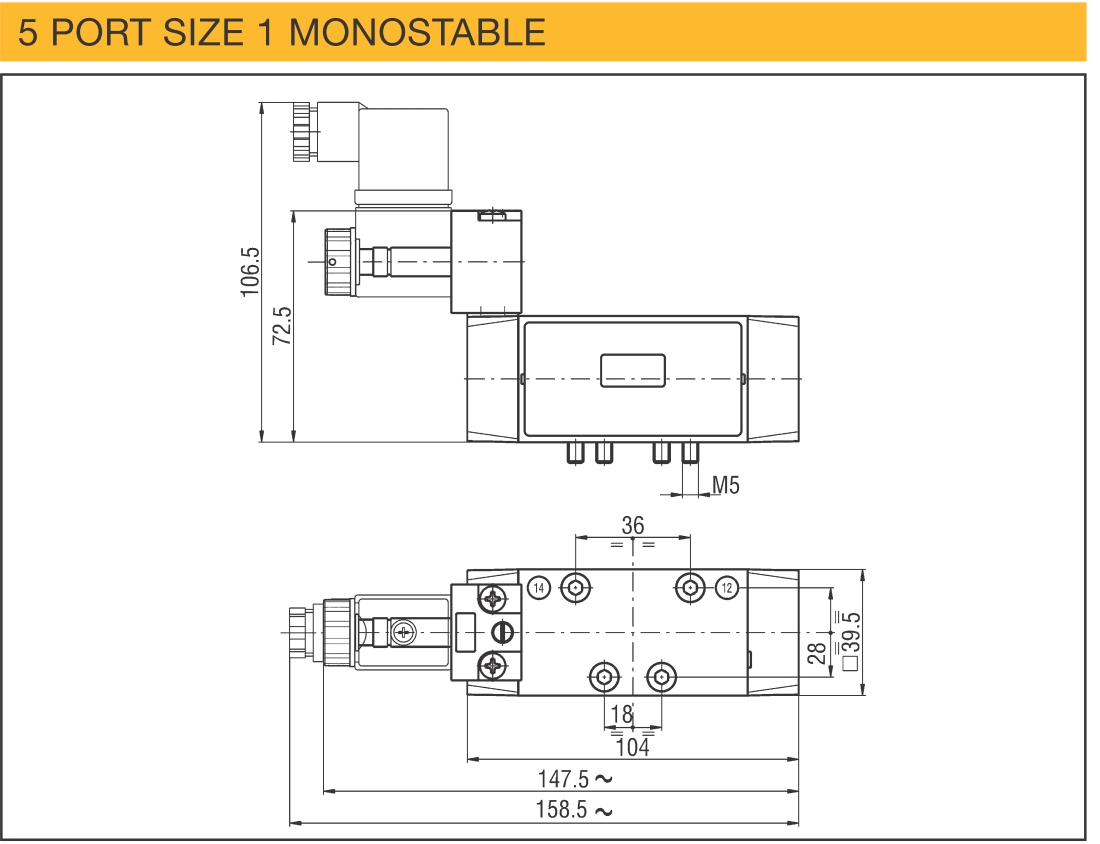

Description	Solenoid valve to ISO 5599/1 standard - size 1 - 5/2 monostable solenoid actuated and return with pneumomechanical spring
Type	UDS 105 KUEC/ZQ
ISO Size	1
Weight (g)	305

CAD models

Request for quotation

Product selection

Index	Selector	Type	Function	Pilot	Return	Response time energized at 6 bar (ms)	Response time de-energized at 6 bar (ms)	Flow rate 6 bar Δp=1 (Nl/min)	ISO Size	Weight (g)
1	1	UDS 105 KUEC/ZQ	5/2 monostable	Solenoid	Pneumomechanical spring	20	30	960	1	305
2	6	UDS 105 KUEC/TQ	5/2 monostable	Solenoid	Pneumatic spring	20	30	960	1	305
3	7	UDS 105 KUER/ZQ	5/2 monostable	Solenoid pilot assisted	Pneumomechanical spring	20	30	960	1	305
4	8	UDS 105 KUEC/TR	5/2 bistable	Solenoid pilot assisted	Small pneumatic	20	25	960	1	310
5	9	UDS 105 KUER/TR	5/2 bistable	Solenoid pilot assisted	Small pneumatic	20	25	960	1	310
6	10	UDS 105 KUEC/KUEC	5/2 bistable	Solenoid	Solenoid	15	15	960	1	375
7	11	UDS 105 KUER/KUER	5/2 bistable	Solenoid pilot assisted	Solenoid pilot assisted	15	15	960	1	375
8	12	UDS 105 SUEC/SUEC	5/3 closed centre	Solenoid	Mechanical spring	20	25	580	1	425
9	13	UDS 105 SUER/SUER	5/3 closed centre	Solenoid pilot assisted	Mechanical spring	20	25	580	1	425
10	2	UDS 105 AUEC/AUEC	5/3 open centre	Solenoid	Mechanical spring	20	25	800	1	425
11	3	UDS 105 AUER/AUER	5/3 open centre	Solenoid pilot assisted	Mechanical spring	20	25	800	1	425
12	4	UDS 105 PUEC/PUEC	5/3 pressure centre	Solenoid	Mechanical spring	20	25	1100	1	425
13	5	UDS 105 PUER/PUER	5/3 pressure centre	Solenoid pilot assisted	Mechanical spring	20	25	1100	1	425
