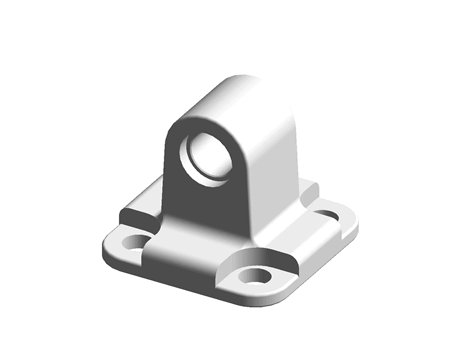

REAR MALE HINGE - STEEL - BX/CM Ø AC

Manufacturer	WAIRCOM
Description	REAR MALE HINGE - STEEL - BX/CM 20 AC
Part number	BX/CM 20 AC
Note 1	Supplied with screws
Note 2	This mounting can be used with the rear hinge mouting of cylinders series "U"

CAD models

Product selection

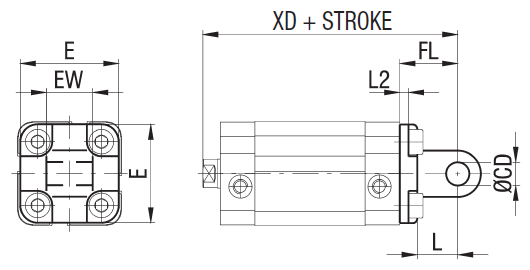

Index	Selector	Ø (mm)	CD H9 (mm)	E (mm)	EW h14 (mm)	FL (mm)	L (mm)	L2 (mm)	XD (mm)	WEIGHT (g)
1	12	20	8	34	16	20	14	2.6	63	80
2	13	25	8	38	16	20	14	2.6	65	85
