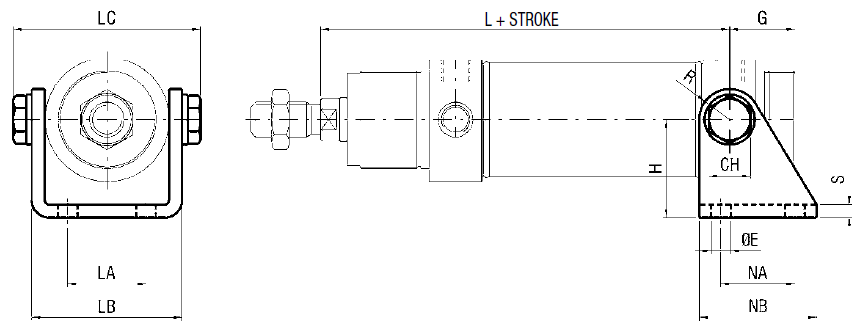

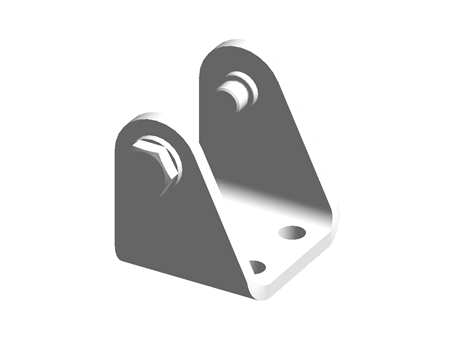

REAR HINGE - STEEL - PSC Ø

CAD models

Product selection

Index	Selector	Ø (mm)	CH (mm)	E (mm)	G (mm)	H (mm)	L (mm)	LA (mm)	LB (mm)	LC (mm)	NA (mm)	NB (mm)	R (mm)	S (mm)	WEIGHT (g)
1	2	32	13	7	20	35	125	20	46.1	58	24	40	12	4	150
2	3	40	17	9	27	40	146	28	56.1	70	30	50	13	5	259
3	4	50	19	9	30	45	158	36	69.1	86	34	54	14	6	403
4	5	63	19	9	34	50	161	42	82.1	100	35	65	16	6	520
