REAR FEMALE HINGE - STEEL - CPUI/CF Ø AC

Manufacturer	WAIRCOM
Description	REAR FEMALE HINGE - STEEL - CPUI/CF 32 AC
Part number	CPUI/CF 32 AC

CAD models

Request for quotation

Product selection

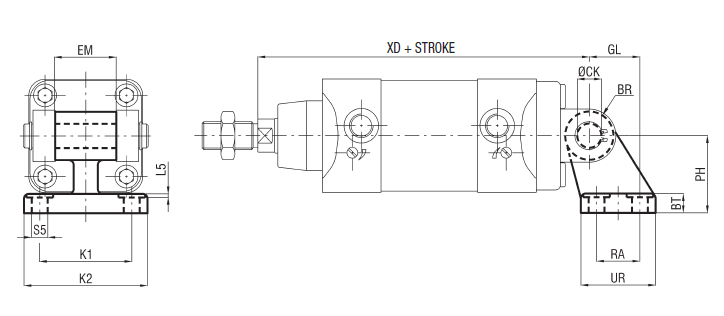

Index	Selector	Ø	CB H14 (mm)	CD H9 (mm)	E (mm)	FL (mm)	L (mm)	L4 (mm)	UB h14 (mm)	XD (mm)	WEIGHT STEEL (g)
1	1	32	26	10	45	22	13	5.5	45	142	138
2	2	40	28	12	52	25	16	5.5	52	160	230
3	3	50	32	12	65	27	16	6.5	60	170	338
4	4	63	40	16	75	32	21	6.5	70	190	540
5	5	80	50	16	95	36	22	10	90	210	1000
6	6	100	60	20	115	41	27	10	110	230	1700
7	7	125	70	25	140	50	30	10	130	275	3350
8	8	160	90	30	180	55	35	10	170	315	5750
9	9	200	90	30	220	60	35	11	170	335	8900
10	10	250	110	40	268	70	59	11	200	375	15900
11	11	320	120	45	340	80	65	15	220	420	30750
