Plunger for panel mounting minivalves

Functions 2/2, 3/2 - N.O. and N.C. - Push-in fittings for pipe Ø4, M5, G1/8"

Description	Plunger for panel mounting minivalves 2/2 N.O. push-in fittings for pipe Ø4 bottom ported
Type	MHAP4
Weight (g)	60

CAD models

Request for quotation

Product selection

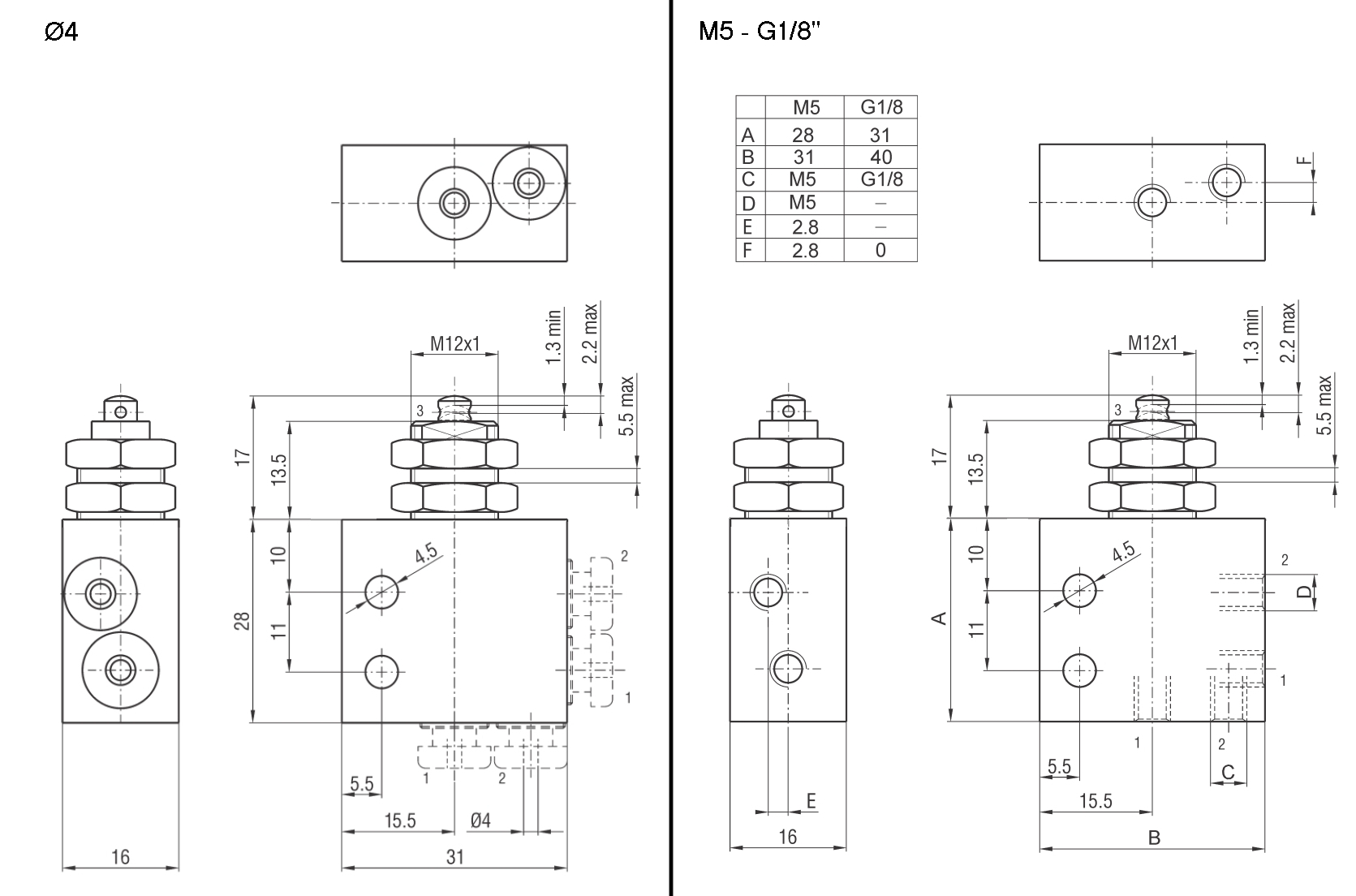

Index	Selector	Type	Function	Pilot	Return	Actuation force at 6 bar (N)	Flow rate 6 bar Δp=1 (Nl/min)	Port size	Weight (g)	A	B	C	D	E	F
1	1	MHAP4	2/2 N.O.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 bottom ported	60	-	-	-	-	-	-
2	12	MHAP4/L	2/2 N.O.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 side ported	60	-	-	-	-	-	-
3	14	MHAPM5	2/2 N.O.	Plunger	Mechanical spring	13	83	M5 bottom ported	60	28	31	M5	M5	2,8	2,8
4	15	MHAPM5/L	2/2 N.O.	Plunger	Mechanical spring	13	83	M5 side ported	60	28	31	M5	M5	2,8	2,8
5	16	MHAP1/8	2/2 N.O.	Plunger	Mechanical spring	13	83	G1/8" bottom ported	60	31	40	G1/8"	-	-	0
6	17	MHCP4	2/2 N.C.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 bottom ported	60	-	-	-	-	-	-
7	18	MHCP4/L	2/2 N.C.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 side ported	60	-	-	-	-	-	-
8	19	MHCPM5	2/2 N.C.	Plunger	Mechanical spring	13	83	M5 bottom ported	60	28	31	M5	M5	2,8	2,8
9	20	MHCPM5/L	2/2 N.C.	Plunger	Mechanical spring	13	83	M5 side ported	60	28	31	M5	M5	2,8	2,8
10	2	MHCP1/8	2/2 N.C.	Plunger	Mechanical spring	13	83	G1/8" bottom ported	60	31	40	G1/8"	-	-	0
11	3	MAP4	3/2 N.O.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 bottom ported	60	-	-	-	-	-	-
12	4	MAP4/L	3/2 N.O.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 side ported	60	-	-	-	-	-	-
13	5	MAPM5	3/2 N.O.	Plunger	Mechanical spring	13	83	M5 bottom ported	60	28	31	M5	M5	2,8	2,8
14	6	MAPM5/L	3/2 N.O.	Plunger	Mechanical spring	13	83	M5 side ported	60	28	31	M5	M5	2,8	2,8
15	7	MAP1/8	3/2 N.O.	Plunger	Mechanical spring	13	83	G1/8" bottom ported	60	31	40	G1/8"	-	-	0
16	8	MCP4	3/2 N.C.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 bottom ported	60	-	-	-	-	-	-
17	9	MCP4/L	3/2 N.C.	Plunger	Mechanical spring	13	83	Push-in fittings for pipe Ø4 side ported	60	-	-	-	-	-	-
18	10	MCPM5	3/2 N.C.	Plunger	Mechanical spring	13	83	M5 bottom ported	60	28	31	M5	M5	2,8	2,8
19	11	MCPM5/L	3/2 N.C.	Plunger	Mechanical spring	13	83	M5 side ported	60	28	31	M5	M5	2,8	2,8
20	13	MCP1/8	3/2 N.C.	Plunger	Mechanical spring	13	83	G1/8" bottom ported	60	31	40	G1/8"	-	-	0

Documentation

Datasheet
