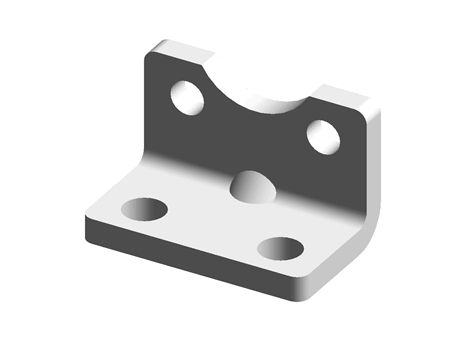

LOW FOOT - STEEL - BX/PB Ø

Manufacturer	WAIRCOM
Description	LOW FOOT - STEEL - BX/PB 20
Part number	BX/PB 20
Note	Supplied with screws

CAD models

Request for quotation

Product selection

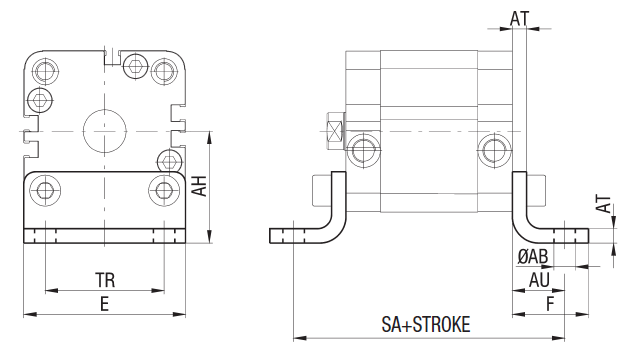

Index	Selector	Ø (mm)	AB H13 (mm)	AH (mm)	AU (mm)	AT (mm)	E (mm)	F (mm)	SA (mm)	TR (mm)	WEIGHT (g)
1	12	20	6.6	27	16	4	36	22	69	22	32
2	13	25	6.6	30	16	4	40	22	71	26	38
