G1/8" - Spool valve - Plunger for panel mounting

Functions 3/2 - 5/2

Description	Spool valve G1/8" 3/2 N.O. - Piloted plunger for panel mounting actuated
Type	EKA8/Q
Weight (g)	230

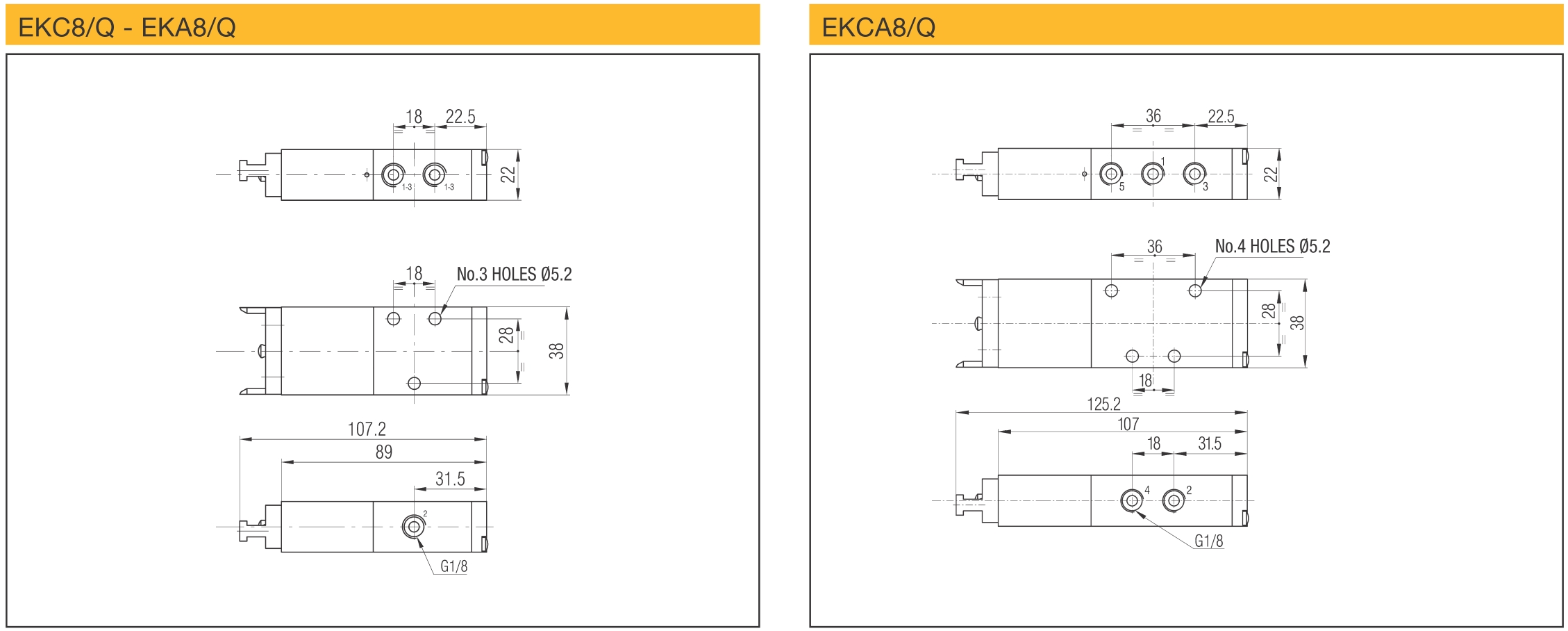

CAD models

Index	Selector	Type	Function	Pilot	Return	Actuation force (N) at Pa = 6 bar	Flow rate 6 bar Δp=1 (Nl/min)	Port size	Weight (g)
1	1	EKA8/Q	3/2 N.O.	Piloted plunger for panel mounting (sensitive)	Mechanical spring	1,5	420	G1/8"	230
2	2	EKC8/Q	3/2 N.C.	Piloted plunger for panel mounting (sensitive)	Mechanical spring	1,5	420	G1/8"	230
3	3	EKCA8/Q	5/2	Piloted plunger for panel mounting (sensitive)	Mechanical spring	1,5	490	G1/8"	260
