G1/4" - Spool valve - Front lever actuated

Functions 3/2 - 5/2 monostables and bistables

Description	Spool valve G1/4" 3/2 N.O. - N.C. monostable - Front lever actuated
Type	EK4/MV
Weight (g)	230

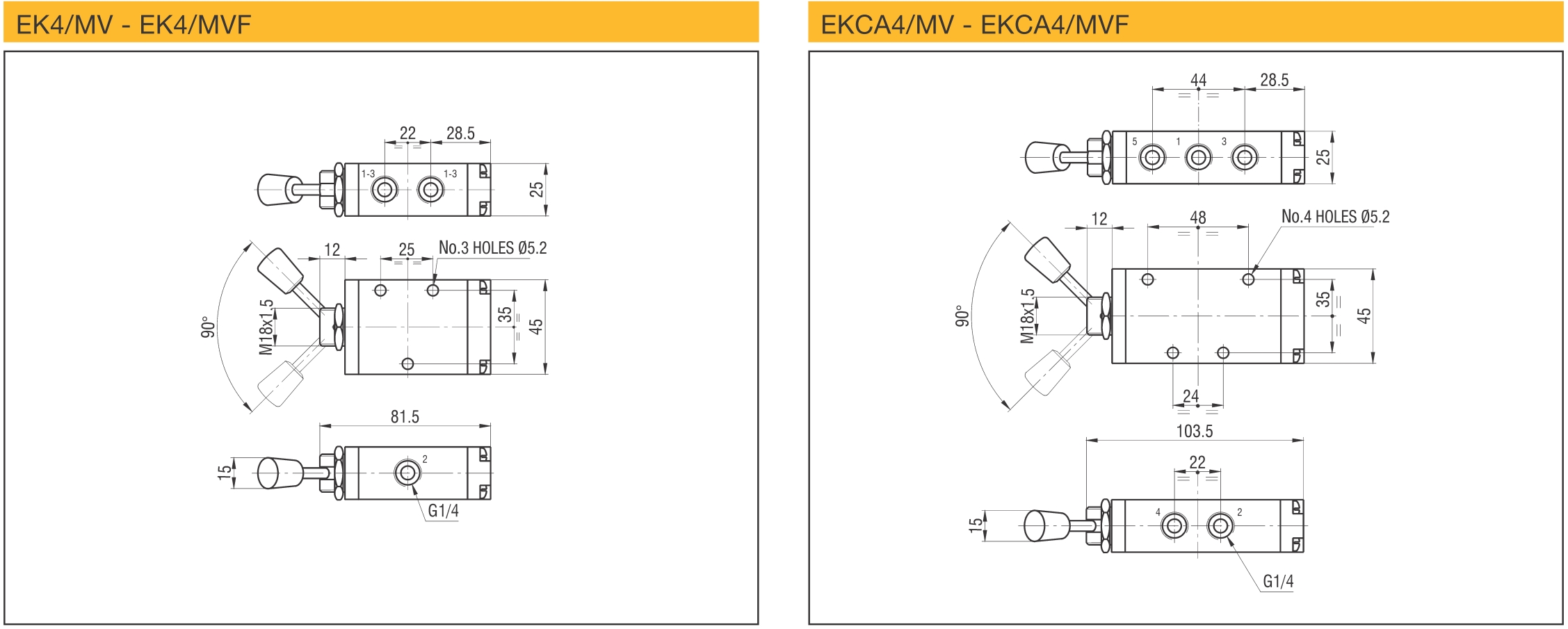

CAD models

Request for quotation

Product selection

Index	Selector	Type	Function	Pilot	Return	Flow rate 6 bar Δp=1 (Nl/min)	Port size	Weight (g)
1	1	EK4/MV	3/2 monostable	Front lever	Mechanical spring	920	G1/4"	230
2	2	EK4/MVF	3/2 bistable	Front lever	Front lever	920	G1/4"	230
3	3	EKCA4/MV	5/2 monostable	Front lever	Mechanical spring	920	G1/4"	385
4	4	EKCA4/MVF	5/2 bistable	Front lever	Front lever	920	G1/4"	385
