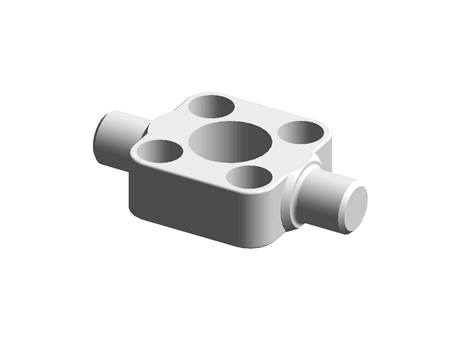

FLOATING HINGE - STEEL - BX/CTA Ø

Manufacturer	WAIRCOM
Description	FLOATING HINGE - STEEL - BX/CTA 20
Part number	BX/CTA 20
Note	Supplied with screws

CAD models

Request for quotation

Product selection

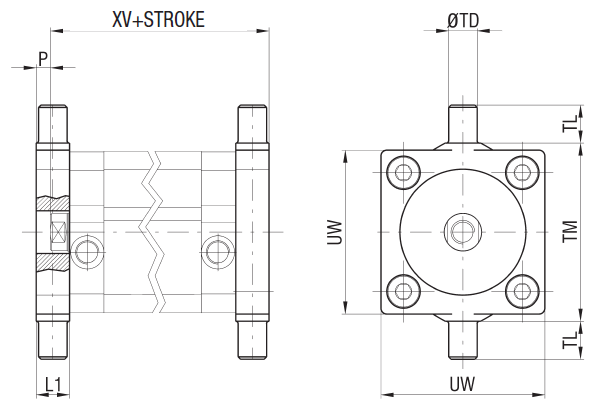

Index	Selector	Ø (mm)	L1 (mm)	P (mm)	TD e9 (mm)	TL h14 (mm)	TM h14 (mm)	UW (mm)	XV (mm)	WEIGHT (g)
1	12	20	14	8	12	12	38	35	57	100
2	13	25	14	8	12	12	42	39	59	114

Documentation

Contact the supplier
