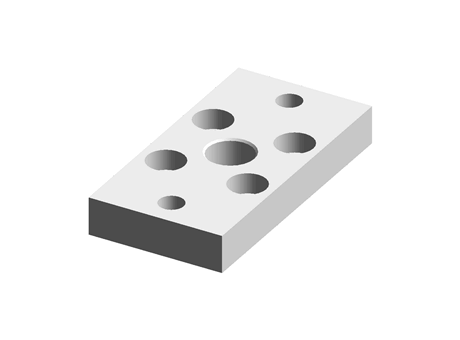

FLANGE Ø 20-25 - ALUMINIUM - BX/F Ø

Manufacturer	WAIRCOM
Description	FLANGE - ALUMINIUM - BX/F 20
Part number	BX/F 20
Note	Supplied with screws

CAD models

Request for quotation

Product selection

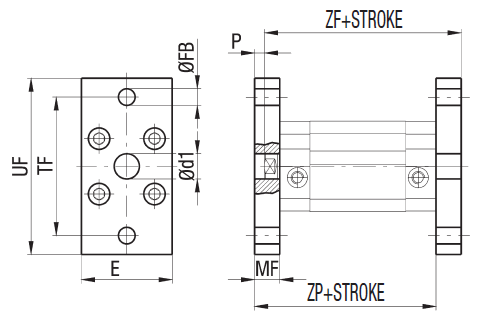

Index	Selector	Ø (mm)	d1 H11 (mm)	E (mm)	FB H13 (mm)	MF (mm)	P (mm)	R	TF (mm)	UF (mm)	ZF (mm)	ZP (mm)	WEIGHT (g)
1	12	20	12	36	6.6	10	4	-	55	70	53	47	70
2	13	25	12	40	6.6	10	4	-	60	76	55	49	80
