FEMALE PISTON ROD CLEVIS WITH PIN AND SNAP RING TO ISO 8140 - STAINLESS STEEL - M6 ÷ M36 X 2

Manufacturer	WAIRCOM
Description	FEMALE PISTON ROD CLEVIS WITH PIN AND SNAP RING TO ISO 8140 - STAINLESS STEEL - M6
Part number	A/FFP6

CAD models

Request for quotation

Product selection

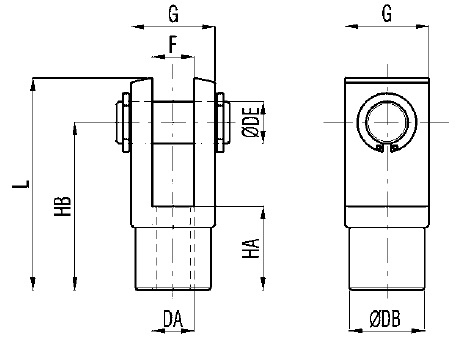

Index	Selector	DA	DB (mm)	DE (mm)	F B12 (mm)	G (mm)	HA (mm)	HB (mm)	L (mm)	WEIGHT (g)	CYLINDER SERIES U-AU and Ø (mm)	CYLINDER SERIES P-AP and Ø (mm)	CYLINDER SERIES BX-ABX-BU and Ø (mm)	CYLINDER SERIES CPU-AX-X-XT and Ø (mm)	CYLINDER SERIES XL and Ø (mm)	STAINLESS STEEL TYPE WITH PIN
1	3	M6	10	6	6	12	12	24	31	18	12-16					A/FFP6
2	4	M8	14	8	8	16	16	32	42	42	20					A/FFP8
3	5	M10x1.25	18	10	10	20	20	40	52	90	25	32	20÷40	32		A/FFP10x1.25
4	6	M12x1.25	20	12	12	24	24	48	62	130		40	50-63	40		A/FFP12x1.25
5	7	M16x1.5	26	16	16	32	32	64	83	330		50-63	80	50-63		A/FFP16x1.5
6	8	M20x1.5	34	20	20	40	40	80	105	650			100	80-100		A/FFP20x1.5
7	9	M27x2	48	30	30	55	54	110	148	2100					125	A/FFP27x2
8	10	M36x2	60	35	35	70	72	144	188	3900					160-200	A/FFP36x2
