FEMALE PISTON ROD CLEVIS WITH PIN AND SNAP RING TO EX CNOMO 06 07 14 STANDARD - STEEL - M10 ÷ M36 X 2

Manufacturer	WAIRCOM
Description	FEMALE PISTON ROD CLEVIS WITH PIN AND SNAP RING TO EX CNOMO 06 07 14 STANDARD - STEEL - M10
Part number	CX/FFP10

CAD models

Request for quotation

Product selection

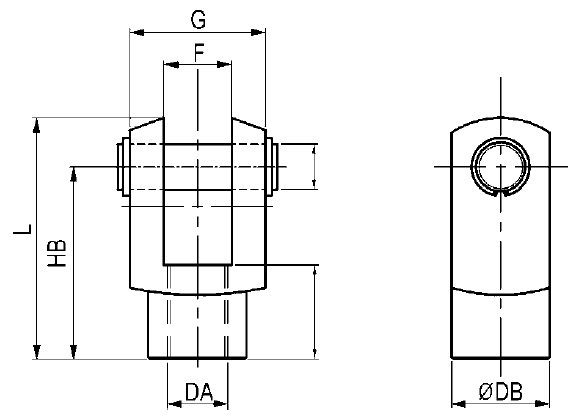

Index	Selector	DA	DB (mm)	DE (mm)	F B12 (mm)	G (mm)	HA (mm)	HB (mm)	L (mm)	WEIGHT (g)	CYLINDER SERIES CX Ø	TYPE WITH PIN
1	2	M10	18	8	11	22	20	36	45	80	32	CX/FFP10
2	3	M16x1.5	26	12	18	36	26	51	64	210	40-50	CX/FFP16x1.5
3	4	M20x1.5	34	16	22	45	30	63	80	440	63-80	CX/FFP20x1.5
4	5	M27x2	42	20	30	63	45	85	105	910	100-125	CX/FFP27x2
5	13	M36x2	50	25	40	80	75	115	140	1800	160-200	CX/FFP36x2
