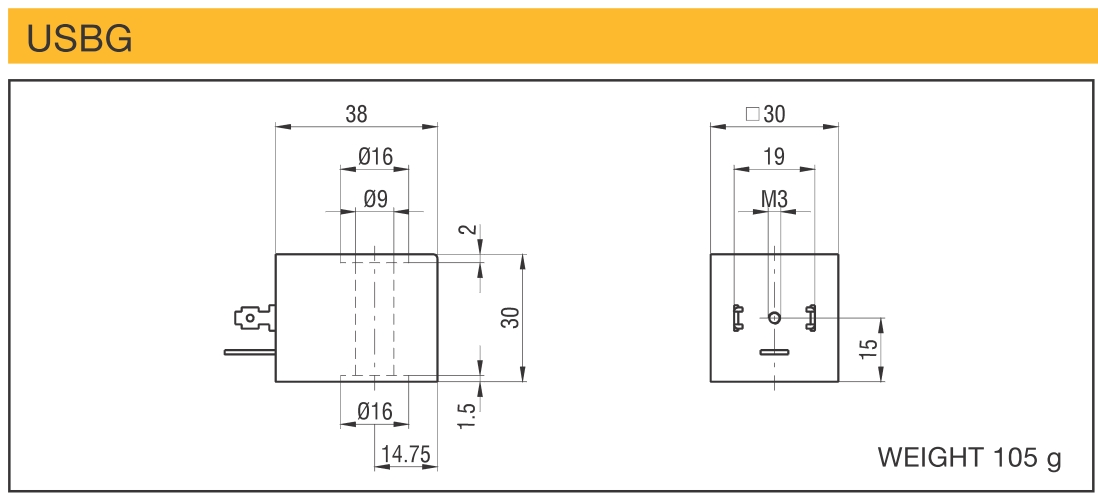

Coils side 30 mm for connectors DIN 43650-A

with Ø9 mm sleeve

Description	Coils side 30 mm for connectors DIN 43650-A, with Ø9 mm sleeve, 5 W, 24 VDC
Type	USBG/02400
Weight (g)	105

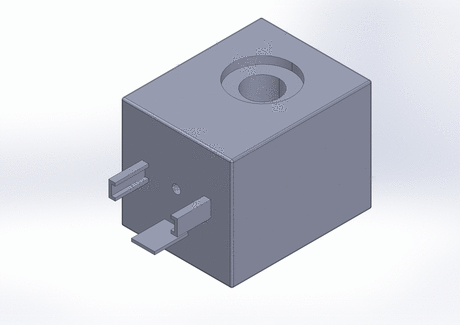

CAD models

Request for quotation

Product selection

Index	Selector	Type	Power	Voltage	Voltage tolerance	Insulation class	Sleeve Ø (mm)	Weight (g)
1	1	USBG/02400	5 W	24 VDC	-10% ÷ +10%	H (180°C)	9	105
2	2	USBG/02450-60	11-8 VA	24 VAC	-10% ÷ +10%	H (180°C)	9	105
3	3	USBG/11050-60	11-8 VA	110 VAC	-10% ÷ +10%	H (180°C)	9	105
4	4	USBG/22050-60	11-8 VA	220 VAC	-10% ÷ +10%	H (180°C)	9	105
5	5	USBG-BA/02400	3 W	24 VDC	-10% ÷ +10%	H (180°C)	9	105
6	6	USBG-BA/02450-60	5,6-2,5 VA	24 VAC	-10% ÷ +10%	H (180°C)	9	105
7	7	USBG-BA/11050-60	5,6-2,5 VA	110 VAC	-10% ÷ +10%	H (180°C)	9	105
8	8	USBG-BA/22050-60	5,6-2,5 VA	220 VAC	-10% ÷ +10%	H (180°C)	9	105
