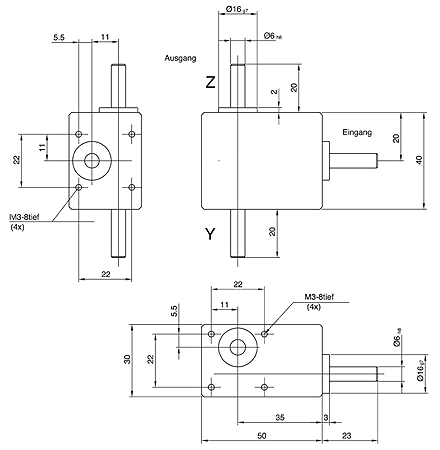

worm reduction gearbox type 91 S

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	worm reduction gearbox type 91 S
Part number	91751SY

CAD models

Request for quotation

Product selection

Index	Selector	order number	output shaft	bearing	MD max. (N.cm)	reduction	material housing	material shafts	material worm	material worm wheel
1	1	91751SY	Y	silde bearing sintered bronze	80	7,5:1	aluminium anodized	stainless steel	case-hardened steel	bronze
2	2	91751SZ	Z	silde bearing sintered bronze	80	7,5:1	aluminium anodized	stainless steel	case-hardened steel	bronze
3	3	91751SYZ	YZ	silde bearing sintered bronze	80	7,5:1	aluminium anodized	stainless steel	case-hardened steel	bronze
4	4	91101SY	Y	silde bearing sintered bronze	80	10:1	aluminium anodized	stainless steel	case-hardened steel	bronze
5	5	91101SZ	Z	silde bearing sintered bronze	80	10:1	aluminium anodized	stainless steel	case-hardened steel	bronze
6	6	91101SYZ	YZ	silde bearing sintered bronze	80	10:1	aluminium anodized	stainless steel	case-hardened steel	bronze
7	7	91201SY	Y	silde bearing sintered bronze	80	20:1	aluminium anodized	stainless steel	case-hardened steel	bronze
8	8	91201SZ	Z	silde bearing sintered bronze	80	20:1	aluminium anodized	stainless steel	case-hardened steel	bronze
9	9	91201SYZ	YZ	silde bearing sintered bronze	80	20:1	aluminium anodized	stainless steel	case-hardened steel	bronze
