Worm Gear Set (with worm shaft), 1 - 8 leads, modul 1,0 - 4,0

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	worm gear with shaft worm, 1 - 8 leads, modul 1,0 - 4,0
Reference	1/1 S

CAD models

Request for quotation

Product selection

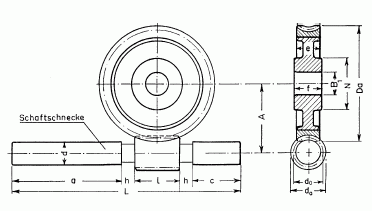

Index	Selector	Order no.	module	no of leads right handed	reduction	No. of teeth	A (mm)	Da (mm)	e (mm)	f (mm)	N (mm)	B1 H7 (mm)	L worm (mm)	da (mm)	d0 (mm)	a (mm)	c (mm)	d (mm)	h (mm)	l (mm)
1	1	1/1 S	1	1	47:1	47	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
2	2	1/2 S	1	2	23,5 :1	47	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
3	3	1/3 S	1	3	15,33:1	46	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
4	4	1/4 S	1	4	11,25:1	45	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
5	5	1/5 S	1	5	8,6 :1	43	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
6	6	1/6 S	1	6	6,83:1	41	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
7	7	1/7 S	1	7	5,57:1	39	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
8	8	1/8 S	1	8	4,63:1	37	30	50.5	10	15	25	10	130	14.5	12.5	60	30	15.1	10	20
9	9	1,5/1 S	1.5	1	47:1	47	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
10	10	1,5/2 S	1.5	2	23,5 :1	47	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
11	11	1,5/3 S	1.5	3	15,33:1	46	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
12	12	1,5/4 S	1.5	4	11,25:1	45	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
13	13	1,5/5 S	1.5	5	8,6 :1	43	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
14	14	1,5/6 S	1.5	6	6,83:1	41	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
15	15	1,5/7 S	1.5	7	5,57:1	39	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
16	16	1,5/8 S	1.5	8	4,63:1	37	45	75.7	15	18	40	15	180	21.75	18.75	80	40	20.1	15	30
17	17	2/1 S	2	1	47:1	47	60	101	20	24	46	20	200	29	25	106	54	20.1		40
18	18	2/2 S	2	2	23,5 :1	47	60	101	20	24	46	20	200	29	25	106	54	20.1		40
19	19	2/3 S	2	3	15,33:1	46	60	101	20	24	46	20	200	29	25	106	54	20.1		40
20	20	2/4 S	2	4	11,25:1	45	60	101	20	24	46	20	200	29	25	106	54	20.1		40
21	21	2/5 S	2	5	8,6 :1	43	60	101	20	24	46	20	200	29	25	106	54	20.1		40
22	22	2/6 S	2	6	6,83:1	41	60	101	20	24	46	20	200	29	25	106	54	20.1		40
23	23	2/7 S	2	7	5,57:1	39	60	101	20	24	46	20	200	29	25	106	54	20.1		40
24	24	2/8 S	2	8	4,63:1	37	60	101	20	24	46	20	200	29	25	106	54	20.1		40
25	25	2,5/1 S	2.5	1	47:1	47	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
26	26	2,5/2 S	2.5	2	23,5 :1	47	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
27	27	2,5/3 S	2.5	3	15,33:1	46	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
28	28	2,5/4 S	2.5	4	11,25:1	45	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
29	29	2,5/5 S	2.5	5	8,6 :1	43	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
30	30	2,5/6 S	2.5	6	6,83:1	41	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
31	31	2,5/7 S	2.5	7	5,57:1	39	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
32	32	2,5/8 S	2.5	8	4,63:1	37	75	126.5	25	30	57	25	250	41.25	36.25	133	67	25.1		50
33	33	3/1 S	3	1	47:1	47	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
34	34	3/2 S	3	2	23,5 :1	47	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
35	35	3/3 S	3	3	15,33:1	46	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
36	36	3/4 S	3	4	11,25:1	45	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
37	37	3/5 S	3	5	8,6 :1	43	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
38	38	3/6 S	3	6	6,83:1	41	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
39	39	3/7 S	3	7	5,57:1	39	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
40	40	3/8 S	3	8	4,63:1	37	90	151.5	30	36	69	30	300	43.5	37.5	160	80	30.1		60
41	41	3,5/1 S	3.5	1	47:1	47	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
42	42	3,5/2 S	3.5	2	23,5 :1	47	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
43	43	3,5/3 S	3.5	3	15,33:1	46	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
44	44	3,5/4 S	3.5	4	11,25:1	45	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
45	45	3,5/5 S	3.5	5	8,6 :1	43	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
46	46	3,5/6 S	3.5	6	6,83:1	41	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
47	47	3,5/7 S	3.5	7	5,57:1	39	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
48	48	3,5/8 S	3.5	8	4,63:1	37	105	176.7	35	42	80	35	350	50.75	43.75	187	93	35.1		70
49	49	4/1 S	4	1	47:1	47	120	202	40	48	92	40	400	58	50	213	107	40.1		80
50	50	4/2 S	4	2	23,5 :1	47	120	202	40	48	92	40	400	58	50	213	107	40.1		80
51	51	4/3 S	4	3	15,33:1	46	120	202	40	48	92	40	400	58	50	213	107	40.1		80
52	52	4/4 S	4	4	11,25:1	45	120	202	40	48	92	40	400	58	50	213	107	40.1		80
53	53	4/5 S	4	5	8,6 :1	43	120	202	40	48	92	40	400	58	50	213	107	40.1		80
54	54	4/6 S	4	6	6,83:1	41	120	202	40	48	92	40	400	58	50	213	107	40.1		80
55	55	4/7 S	4	7	5,57:1	39	120	202	40	48	92	40	400	58	50	213	107	40.1		80
56	56	4/8 S	4	8	4,63:1	37	120	202	40	48	92	40	400	58	50	213	107	40.1		80
