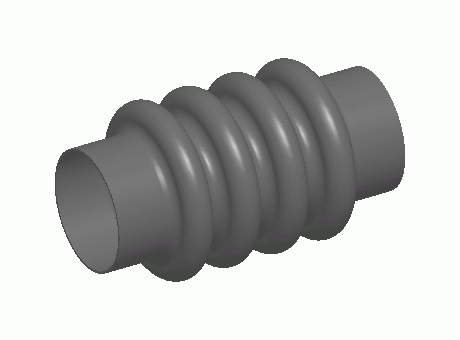

Universal Joint Accessories - Leather Bellow

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Leather Bellow for Universal Joints
Reference	FB 246

CAD models

Product selection

Index	Selector	Order no.	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	ply	for universal joints
1	1	FB 246	13	30	12	42	2	KL 101
2	2	FB 491	16	32	12	34	2	KL 122, 201, 202
3	3	FB 247	16	32	15	52	2	KL102
4	4	FB 262	16	32	15	40	2	202
5	5	FB 267	16	32	15	62	2	221, 222
6	6	FB 255	16	32	15	74	3	KL112
7	7	FB 270	18	35	12	40	2	KL124
8	8	FB 248	20	35	20	62	2	KL103
9	9	FB 256	20	35	20	88	3	KL113, 223
10	10	FB 271	22	40	12	48	2	KL126, 203
11	11	FB 249	25	40	20	74	3	KL104, 224
12	12	FB 257	25	40	20	104	5	KL114
13	13	FB 272	26	45	12	56	2	KL128, 204
14	14	FB 273	29	50	12	60	3	KL130
15	15	FB 274	32	55	15	68	3	KL131, 205
16	16	FB 250	32	55	20	86	3	KL105
17	17	FB 258	32	55	20	124	5	KL115
18	18	FB 275	37	65	15	74	3	KL132
19	19	FB 251	40	65	25	108	3	KL106
20	20	FB 276	42	70	20	82	3	KL133, 206
21	21	FB 277	47	75	20	95	3	KL134
22	22	FB 263	50	75	25	105	3	207
23	23	FB 252	50	75	25	132	4	KL107
24	24	FB 260	50	75	25	188	6	KL117
25	25	FB 278	52	80	20	105	3	KL135
26	26	FB 279	58	90	25	122	4	KL136
27	27	FB 264	63	95	30	130	4	208
28	28	FB 253	63	95	30	166	5	KL108
29	29	FB 261	63	95	30	238	9	KL118
30	30	FB 265	75	105	40	160	5	209
31	31	FB 268	75	105	40	245	11	229
32	32	FB 266	90	120	40	190	6	2010
