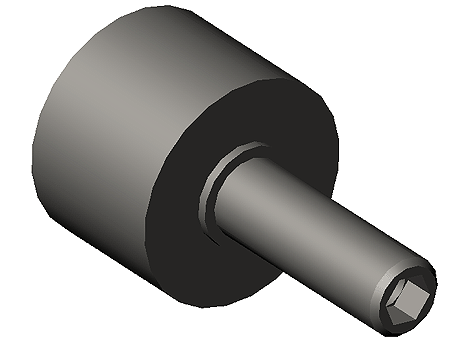

Support Rollers with Concentric bolt

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Support Rollers with Concentric Journals
Reference	HPC26

CAD models

Product selection

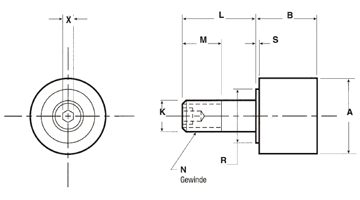

Index	Selector	Order No.	A (mm)	B (mm)	K (mm)	L (mm)	M (mm)	N	R (mm)	S (mm)	X (mm)	Housing Hole (mm)	Weight (kg)
1	1	HPC26	26	20	10	23	13	M10x1,0	13.1	0.8	4	10.02	0.09
2	2	HPC30	30	20	12	25	14	M12x1,5	15.9	0.8	4	12.02	0.11
3	3	HPC32	32	22	12	25	14	M12x1,5	15.9	0.8	4	12.02	0.14
4	4	HPC35	35	22	16	32.5	18	M16x1,5	19.1	0.8	8	16.02	0.17
5	5	HPC40	40	30	14	40	26	M14x2,0	18	1.6	8	14.02	0.27
6	6	HPC40-1	40	27.6	18	36.5	19	M18x1,5	22	1.6	8	18.02	0.24
7	7	HPC47	47	27.6	20	40.5	21	M20x1,5	25.5	1.6	8	20.02	0.42
8	8	HPC50	50	40	16	50	35	M16x2,0	23	1.6	8	16.02	0.54
9	9	HPC52	52	33.6	20	40.5	21	M20x1,5	25.5	1.6	8	20.02	0.54
10	10	HPC62	62	44	24	58	35	M24x3,0	32	1.6	8	24.02	1.04
11	11	HPC62-1	62	44	24	49.5	25	M24x1,5	32	1.6	8	24.02	1.04
12	12	HPC72	72	44	24	49.5	25	M24x1,5	32	1.6	8	24.02	1.4
13	13	HPC76	76	52	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	1.91
14	14	HPC80	80	52	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.07
15	15	HPC85	85	52	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.37
16	16	HPC90	90	52	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	2.65
17	17	HPC100	100	52	30	80	50	M30x3,5	44.5	1.6	12	30.02	3.33
18	18	HPC100-1	100	52	30	69.5	40	M30x3,5	44.5	1.6	12	30.02	3.15
19	19	HPC125	125	76	48	105	60	M48x5,0	82.5	1.6	12	48.02	8.48
20	20	HPC150	150	76	64	140	82	M64x6,0	82.5	1.6	12	64.02	12.5
21	21	HPC200	200	76	64	140	82	M64x6,0	82.5	1.6	12	64.02	21.87
