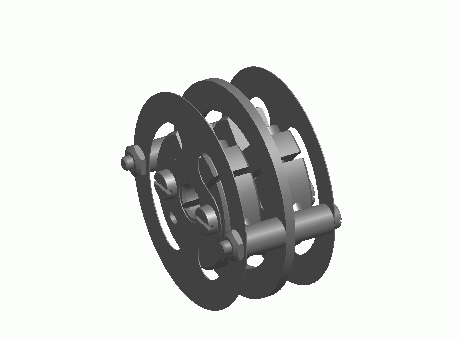

Spring spacer coupling

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Spring spacer coupling
Reference	FSXS20140202

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	d1 (mm)	d2 (mm)	Max. Speed (rpm)	Max. Torque (N.cm)	Weight (g)	Material flange	Material spring

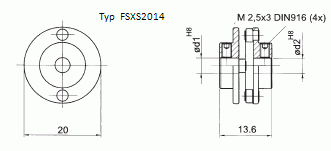

1	1	FSXS20140202	2	2	10000	50	5	Aluminium, chrome plated	Stainless steel
2	2	FSXS20140204	2	4	10000	50	5	Aluminium, chrome plated	Stainless steel
3	3	FSXS20140404	4	4	10000	50	5	Aluminium, chrome plated	Stainless steel
4	4	FSXS20140606	6	6	10000	50	5	Aluminium, chrome plated	Stainless steel

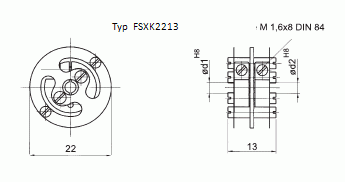

5	5	FSXK22130202	2	2	10000	20	9.5	Bronzed steel	Stainless steel
6	6	FSXK22130203	2	3	10000	20	9.5	Bronzed steel	Stainless steel
7	7	FSXK22130303	3	3	10000	20	9.5	Bronzed steel	Stainless steel
8	8	FSXK22130404	4	4	10000	20	9.5	Bronzed steel	Stainless steel

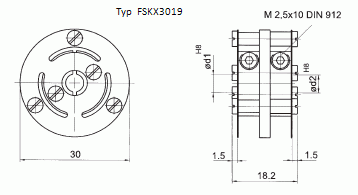

9	9	FSXK30190303	3	3	12000	80	16	Aluminum, anodised	Stainless steel
10	10	FSXK30190404	4	4	12000	80	16	Aluminum, anodised	Stainless steel
11	11	FSXK30190506	5	6	12000	80	16	Aluminum, anodised	Stainless steel
12	12	FSXK30190606	6	6	12000	80	16	Aluminum, anodised	Stainless steel
13	13	FSXK30190608	6	8	12000	80	16	Aluminum, anodised	Stainless steel
