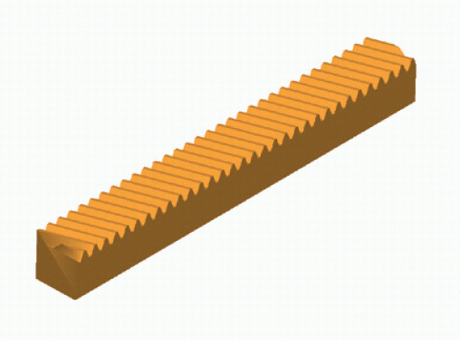

Racks, Modules 0.3 & 0.5, Helical, Brass, Left-handed, 20° PA

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Gear racks, helical geared Brass, left-handed, pressure angle of 20 degrees, Module 0,3 and 0,5
Reference	SN 03/250 MS

CAD models

Product selection

Level of detail

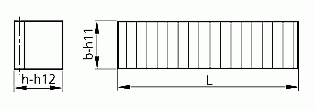

Index	Selector	Order No.	Modul (mm)	b (mm)	Tol. b	h (mm)	Tol. h	L (mm)	Material
1	1	SN 03/250 MS	0.3	5	h11	3	h12	250	BR 58
2	2	SN 05/250 MS	0.5	10	h11	4	h12	250	BR 58
