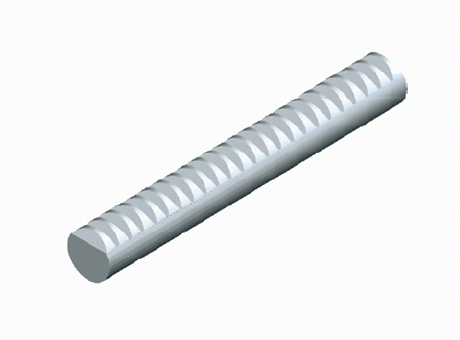

Rack (Round), Modules 1 to 5, C45 (non-hardened), 20° PA

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	round gear rack, straight geared, quenched and tempered steel C45 not hardened, angle of pressure 20°, Module 1,0 - 5,0
Reference	R 10250

CAD models

Request for quotation

Product selection

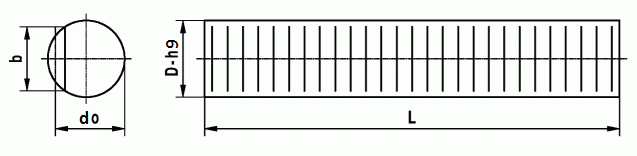

Index	Selector	Order no.	Module (mm)	L (mm)	Dh9 (mm)	do (mm)	Material
1	1	R 10250	1	250	10	9	ST
2	2	R 10500	1	500	10	9	ST
3	3	R 101000	1	1000	10	9	ST
4	4	R 15250	1.5	250	15	13.5	ST
5	5	R 15500	1.5	500	15	13.5	ST
6	6	R 151000	1.5	1000	15	13.5	ST
7	7	R 20250	2	250	20	18	ST
8	8	R 20500	2	500	20	18	ST
9	9	R 201000	2	1000	20	18	ST
10	10	R 25250	2.5	250	25	22.5	ST
11	11	R 25500	2.5	500	25	22.5	ST
12	12	R 251000	2.5	1000	25	22.5	ST
13	13	R 30250	3	250	30	27	ST
14	14	R 30500	3	500	30	27	ST
15	15	R 301000	3	1000	30	27	ST
16	16	R 40500	4	500	40	36	ST
17	17	R 401000	4	1000	40	36	ST
18	18	R 50500	5	500	50	45	ST
19	19	R 501000	5	1000	50	45	ST
