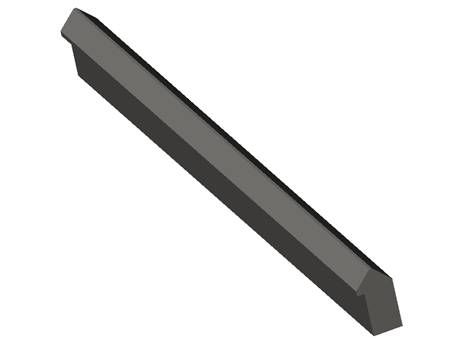

Prism Rail, type MTV

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Prism Rail Type MTV
Reference	H-MTV-0 500

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	Hardness	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
1	1	H-MTV-0	38 HRC	45	25	5	7.5	15	16
2	2	H-MTV-0	38 HRC	75	40	6	14	25.8	27
3	3	H-MTV-2	38 HRC	100	50	6	19	37.2	39
4	4	L-MTV-0	55 - 60 HRC	45	25	5	7.5	15	16
5	5	L-MTV-1	55 - 60 HRC	75	40	6	14	25.8	27
6	6	L-MTV-2	55 - 60 HRC	100	50	6	19	37.2	39

Length (mm)

Contact the supplier
