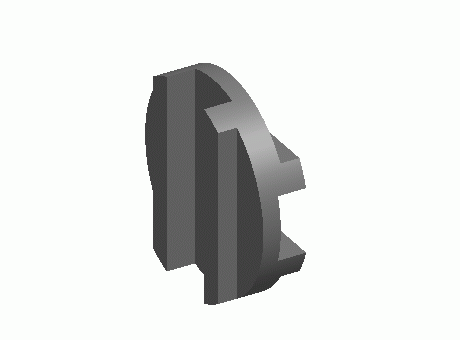

Oldham transmission disks

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Oldham transmission disks
Reference	D6

CAD models

Product selection

Index	Selector	Size	D (mm)
1	1	6	6.4
2	2	9	9.5
3	3	13	12.7
4	4	19	19.1
5	5	25	25.4
6	6	33	33.3
7	7	41	41.3
8	8	50	50
9	9	57	57.1

Material
