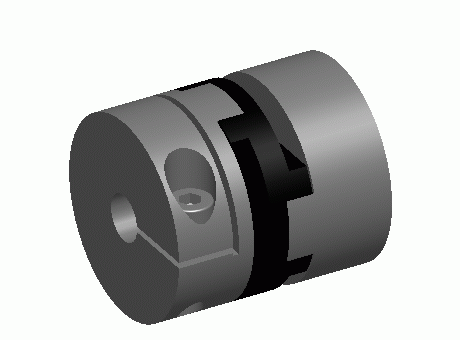

Oldham Coupling

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Oldham Coupling
Reference	ME44-OS6A-2--OS6A-2--6D

CAD models

Product selection

Index	Selector	Hub type left	D (mm)	L (mm)	L1 (mm)	B min (mm)	B max (mm)	Weight (g)
1	1	OS6A	6.4	12.7	3.8	2	3.18	2.5
2	2	OS6C	6.4	12.7	3.8	0	3.18	2.5
3	3	OS9A	9.5	12.7	3.8	3	5	4
4	4	OS9C	9.5	12.7	3.8	0	5	4
5	5	OS13A	12.7	15.9	4.3	3	6.35	11
6	6	OS13C	12.7	15.9	4.3	0	6.35	11
7	7	OS19A	19.1	22	6.3	4	8	12
8	8	OS19B	19.1	22	6.3	4	8	12
9	9	OS19C	19.1	22	6.3	0	8	12
10	10	OX19F	19.1	26	9.4	4	8	13
11	11	OX19G	19.1	26	9.4	4	8	13
12	12	OS25A	25.4	28.4	8.6	6	12	31
13	13	OS25B	25.4	28.4	8.6	6	12	31
14	14	OS25C	25.4	28.4	8.6	0	12	31
15	15	OX25F	25.4	32.4	11.6	6	12	31
16	16	OX25G	25.4	32.4	11.6	6	12	31
17	17	OS33A	33.3	48	13	8	16	86
18	18	OS33B	33.3	48	13	8	16	86
19	19	OS33C	33.3	48	13	0	16	86
20	20	OX33F	33.3	48	15	8	16	74
21	21	OX33G	33.3	48	15	8	16	74
22	22	OS41A	41.3	50.8	16.7	9.525	20	148
23	23	OS41B	41.3	50.8	16.7	9.525	20	148
24	24	OS41C	41.3	50.8	16.7	0	20	148
25	25	OX41F	41.3	50.8	17.8	9.525	20	142
26	26	OX41G	41.3	50.8	17.8	9.525	20	142
27	27	OX50F	50	59.6	20.6	9.525	25.4	208
28	28	OX50G	50	59.6	20.6	9.525	25.4	208
29	29	OX57F	57.1	78	28.4	12	30	361
30	30	OX57G	57.1	78	28.4	12	30	361

Bore diameter left hub B1 (mm)

Index	Selector	Hub type right	D (mm)	L (mm)	L1 (mm)	B min (mm)	B max (mm)	Weight (kg)
1	1	OS6A	6.4	12.7	3.8	2	3.18	2.5
2	2	OS6C	6.4	12.7	3.8	0	3.18	2.5

Bore diameter right hub B2 (mm)

Material transmission disk
