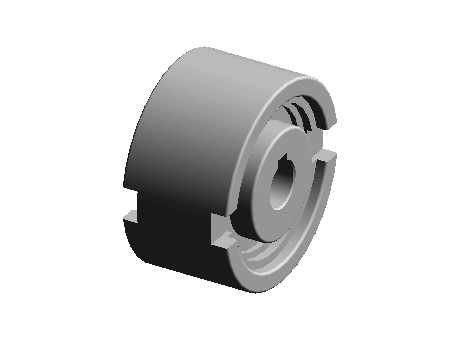

model UF

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	model UF
Part number	UF 8

CAD models

Request for quotation

Product selection

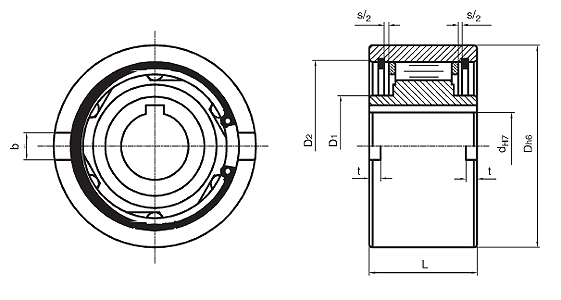

Index	Selector	order number	dH7 (mm)	Dh6 (mm)	L (mm)	s (mm)	D1 (mm)	D2 (mm)	b (mm)	t (mm)	weight (kg)	speed inner ring (rpm)	speed outer ring (rpm)	TN (N.m)	no load torque (N.m)
1	1	UF 8	8	37	20	1	20	30	6	3	0.1	5000	6000	20	0.09
2	2	UF 9	9	37	20	1	20	30	6	3	0.1	5000	6000	20	0.09
3	3	UF 12	12	37	20	1	20	30	6	3	0.1	5000	6000	20	0.11
4	4	UF 15	15	47	30	1	26	37	7	3.5	0.3	4500	5500	78	0.15
5	5	UF 20	20	62	36	1	37	52	8	3.5	0.6	3000	3600	188	0.18
6	6	UF 25	25	80	40	2	40	68	9	4	1.1	2200	2600	250	0.36
7	7	UF 30	30	90	48	2	45	75	12	5	1.6	1800	2100	500	0.4
8	8	UF 35	35	100	53	2	50	80	13	6	2.3	1600	2000	680	0.6
9	9	UF 40	40	110	63	2	55	90	15	7	3.1	1300	1700	1115	0.84
10	10	UF 45	45	120	63	2	60	95	16	7	3.7	1100	1500	1500	0.94
11	11	UF 50	50	130	80	2	70	110	17	8.5	5.4	850	1300	2375	1.28
12	12	UF 55	55	140	80	2	75	115	18	9	6.1	800	1200	2500	1.5
13	13	UF 60	60	150	95	2	80	125	18	9	8.5	700	1100	4250	1.6
14	14	UF 70	70	170	110	3	95	140	20	9	13	550	900	5875	3.6
15	15	UF 80	80	190	125	3	110	160	20	9	18	620	800	10000	3.6
16	16	UF 90	90	215	140	3	120	180	24	11.5	25.3	500	700	17350	6.8
17	17	UF 100	100	260	150	4	140	210	28	14.5	42.1	400	600	19750	8.8
18	18	UF 130	130	300	180	4	160	240	32	17.5	65	300	500	35000	12.5
19	19	UF 150	150	320	180	4	205	260	32	17	95	250	400	44400	13.5
