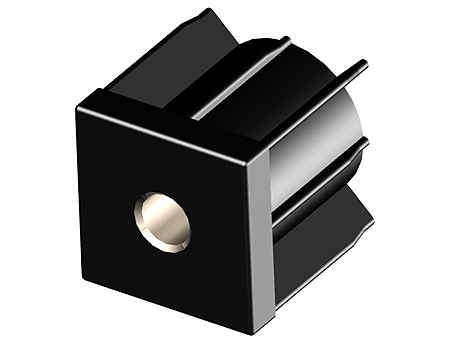

Machine Foot Accessories - Threaded Insert (Square)

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Threaded Bush for Machine footing, square
Reference	GV3027M10

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	M	D1 (mm)	D2 (mm)	H (mm)	L (mm)	K (mm)	max. staistical Load (N)	Pipe outer (mm)	Pipe inside (mm)	Wall Thickness (mm)
1	1	GV3027M10	M 10	30	27.5	6	33	19	5000	30	27	1.5
2	2	GV3027M12	M 12	30	27.5	6	33	19	5000	30	27	1.5
3	3	GV3027M14	M 14	30	27.5	6	33	24	5000	30	27	1.5
4	4	GV3027M16	M 16	30	27.5	6	33	24	5000	30	27	1.5
5	5	GV3532M10	M 10	35	32.5	8	43	19	5000	35	32	1.5
6	6	GV3532M12	M 12	35	32.5	8	43	19	5000	35	32	1.5
7	7	GV3532M14	M 14	35	32.5	8	43	24	5000	35	32	1.5
8	8	GV3532M16	M 16	35	32.5	8	43	24	5000	35	32	1.5
9	9	GV3532M20	M 20	35	32.5	8	43	30	8000	35	32	1.5
10	10	GV4037M10	M 10	40	37.5	8	43	19	5000	40	37	1.5
11	11	GV4037M12	M 12	40	37.5	8	43	19	5000	40	37	1.5
12	12	GV4037M14	M 14	40	37.5	8	43	24	5000	40	37	1.5
13	13	GV4037M16	M 16	40	37.5	8	43	24	5000	40	37	1.5
14	14	GV4037M20	M 20	40	37.5	8	43	30	8000	40	37	1.5
15	15	GV4036M16	M 16	40	36.5	8	43	24	5000	40	36	2
16	16	GV5047M20	M 20	50	47.5	10	55	30	8000	50	47	1.5
17	17	GV5045M16	M 16	50	45.5	10	55	24	5000	50	45	2.5
18	18	GV5045M20	M 20	50	45.5	10	55	30	8000	50	45	2.5
