Guide Wheels, 70°, Version 2, short stud

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	guide rollers, version 2, short design
Reference	RK-702-Z

CAD models

Request for quotation

Product selection

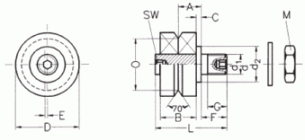

Index	Selector	Order no.	Sealing	A (mm)	B (mm)	C (mm)	D (mm)	d	d1 (mm)	E (mm)	F (mm)	G (mm)	L (mm)	M	O (mm)	SW (mm)
1	1	RK-702-Z	Blech	9	14	2	25	M8	8		10	7.5	27.2	M8	20.4	3
2	2	RK-703-Z	Blech	11.5	18	2.5	34	M10x1	10		14	9	36.5	M10x1	27.16	5
3	3	RK-702-E	Blech	9	14	2	25	M8	8	1	10	7.5	27.2	M8	20.4	3
4	4	RK-703-E	Blech	11.5	18	2.5	34	M10x1	10	1	14	9	36.5	M10x1	27.16	5
5	5	RK-702-ZD	NBR	9	14	2	25	M8	8		10	7.5	27.2	M8	20.4	3
6	6	RK-703-ZD	NBR	11.5	18	2.5	34	M10x1	10		14	9	36.5	M10x1	27.16	5
7	7	RK-702-ED	NBR	9	14	2	25	M8	8	1	10	7.5	27.2	M8	20.4	3
8	8	RK-703-ED	NBR	11.5	18	2.5	34	M10x1	10	1	14	9	36.5	M10x1	27.16	5
