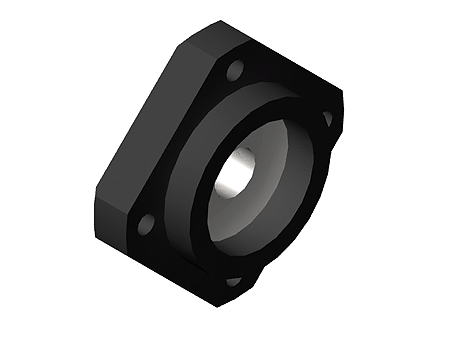

FF Floating Bearing

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	FF Floating Bearing
Reference	FF 10

CAD models

Request for quotation

Product selection

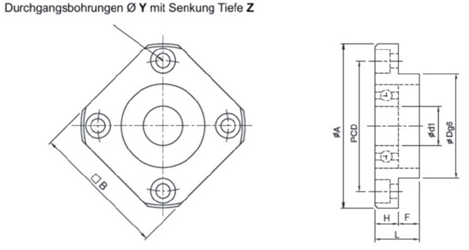

Index	Selector	Order no.	d1 (mm)	L (mm)	H (mm)	F (mm)	Dg6 (mm)	A (mm)	PCD (mm)	B (mm)	X (mm)	Y (mm)	Z (mm)
1	1	FF 10	8	12	7	5	28	43	35	35	3.4	6.5	4
2	2	FF 12	10	15	7	8	34	52	42	42	4.5	8	4
3	3	FF 15	15	17	9	8	40	63	50	52	5.5	9.5	5.5
4	4	FF 17	17	20	11	9	50	77	62	61	6.6	11	6.5
5	5	FF 20	20	20	11	9	57	85	70	68	6.6	11	6.5
6	6	FF 25	25	24	14	10	63	98	80	79	9	14	8.5
7	7	FF 30	30	27	18	9	75	117	95	93	11	17.5	11
