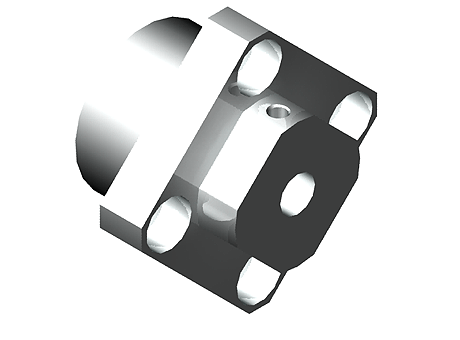

FF Floating Bearing

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	FF Floating Bearing
Reference	FK 5

CAD models

Request for quotation

Product selection

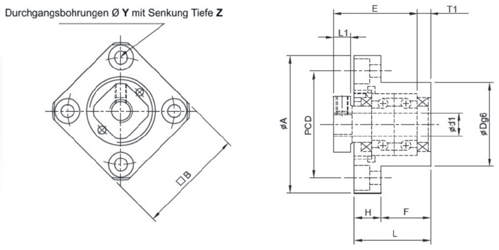

Index	Selector	Order no.	d1 (mm)	L (mm)	H (mm)	F (mm)	E (mm)	Dg6 (mm)	A (mm)	PCD (mm)	B (mm)	L1 (mm)	T1 (mm)	L2 (mm)	T2 (mm)	X (mm)	Y (mm)	Z (mm)	M	T (mm)
1	1	FK 5	5	16.5	6	10.5	18.5	20	34	26	26	5.5	3.5	7	5	3.4	6.5	4	M2,6	11
2	2	FK 6	6	20	7	13	22	22	36	28	28	5.5	3.5	8.5	6.5	3.4	6.5	4	M3	12
3	3	FK 8	8	23	9	14	26	28	43	35	35	7	4	10	7	3.4	6.5	4	M3	14
4	4	FK 10	10	27	10	17	29.5	34	52	42	42	7.5	5	8.5	6	4.5	8	4	M3	16
5	5	FK 12	12	27	10	17	29.5	36	54	44	44	7.5	5	8.5	6	4.5	8	4	M3	19
6	6	FK 15	15	32	15	17	36	40	63	50	52	10	6	12	8	5.5	9.5	6	M3	22
7	7	FK 17	17	45	22	23	47	50	77	62	61	11	9	14	12	6.6	11	10	M4	24
8	8	FK 20	20	52	22	30	50	57	85	70	68	8	10	12	14	6.6	11	10	M4	30
9	9	FK 25	25	57	27	30	60	63	98	80	79	13	10	20	17	9	15	13	M5	35
10	10	FK 30	30	62	30	32	61	75	117	95	93	11	12	17	18	11	17.5	15	M6	40
