End of Life - worm reduction gearbox GS3

Manufacturer	Technische Antriebselemente GmbH - Germany

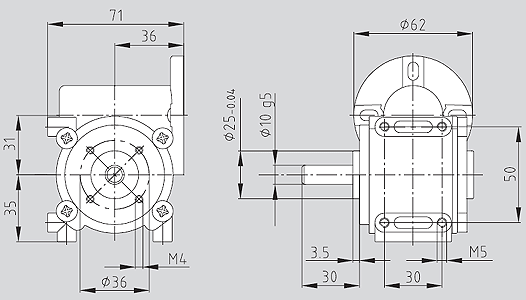

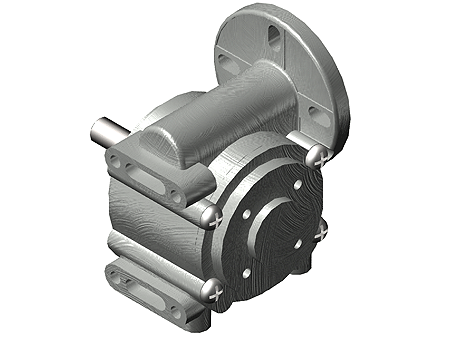

Description	worm reduction gearbox GS3
Part number	GS 3-2.5

CAD models

Request for quotation

Product selection

order number

GS 3

Index	Selector	i	M (N.m)	ni (%)
1	1	2.5	4.4	0.82
2	2	5	9.5	0.78
3	3	7	9.7	0.75
4	4	10	9.5	0.68
5	5	15	10.7	0.64
6	6	20	10.3	0.57
7	7	30	10.3	0.47
8	8	50	9	0.35
9	9	70	9	0.34
10	10	100	7.4	0.28
