End of Life - worm reduction gearbox 1-step, a= 60mm, Type FA/FH 2060, flange

Manufacturer	Technische Antriebselemente GmbH - Germany

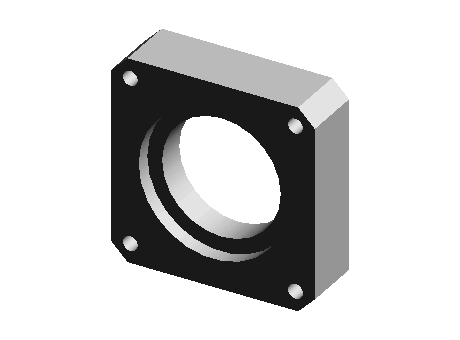

Description	worm reduction gearbox 1-step, a= 60mm, Type FA/FH 2060, flange
Part number	F 06085

CAD models

Request for quotation

Product selection

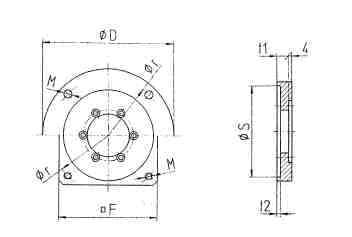

Index	Selector	type	Fig.	S (mm)	r (mm)	F (mm)	t1 (mm)	t2 (mm)	D	M	m (kg)
1	1	F 06085	1	80	100	92	14	5		M6	1.5
2	2	F 06090	1	95	115	100	14	5		M6	1.5
3	3	F 06084	1	95	115	105	14	5		M8	1.5
4	4	F 06083	1	95	130	115	14	5		M8	1.5
5	5	F 06082	1	95	165	140	14	5		M10	1.5
6	6	F 06089	1	110	130	116	14	5		M8	1.5
7	7	F 06091	1	110	145	120	14	5		M8	1.5
8	8	F 06092	1	110	145	130	20	11		M8	1.5
9	9	F 06093	1	130	165	142	20	11		M10	1.5
10	10	F 06081	1	110	165	140	14	5		M10	1.5
11	11	F 06080	1	130	165	140	14	5		M10	1.5
12	12	F 06086	2	110	130		14	5	160	9	1.5
13	13	F 06088	2	130	165		14	5	185	M10	1.5
