End of Life - Universal Joint (Single), Plain bearings, Low Cost, DIN808/DIN7551

Manufacturer	Technische Antriebselemente GmbH - Germany

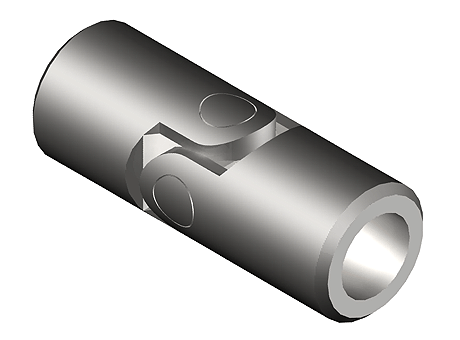

Description	Single universal joint with slide bearings, DIN 808 [former DIN 7551], Low-Cost-construction
Part number	KL 101 UNGG

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D1 H8 (mm)	D2 (mm)	L1 -1 (mm)	L2 ±1 (mm)	L4 ±0,5 (mm)	Weight (kg)
1	1	KL 101 UNGG	8	13	13	42	21	0.024
2	2	KL 102 UNGG	10	16	17	52	26	0.047
3	3	KL 103 UNGG	12	20	20	62	31	0.089
4	4	KL 104 UNGG	16	25	23	74	37	0.16
5	5	KL 105 UNGG	20	32	25	86	43	0.31
