End of Life - Universal Joint (Precision telescopic), Needle bearings, Heavy duty, Series H, DIN808-W, Maintenance free

Manufacturer	Technische Antriebselemente GmbH - Germany

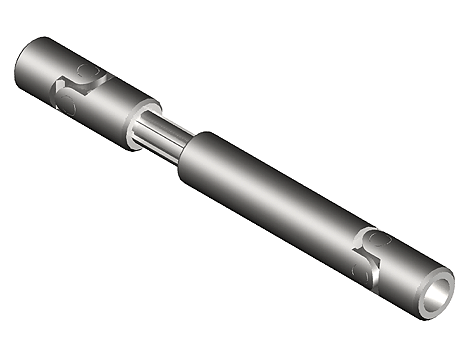

Description	Precission telescopic shaft with needle bearings, maintenance free, series H, DIN-808-W [reinforced construction]
Part number	KL 164 W

CAD models

Request for quotation

Product selection

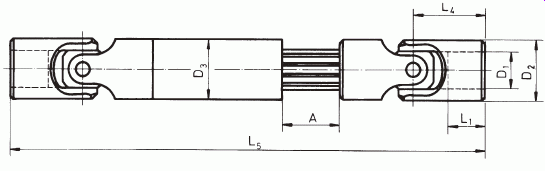

Index	Selector	Order no.	D1 H7 (mm)	D2 (mm)	D3 (mm)	L1 -1 (mm)	L4 ±0,5 (mm)	Lmax (mm)	Lmin (mm)	A (mm)	Spline shaft profile DIN 5463	B P9 (mm)	T +0,2 (mm)	S	Weight (kg)	with universal joint
1	1	KL 164 W	10	20	19.5	13	24	250	190	60	6 x 11 x 14	3	11.4	8	0.341	203 W
2	2	KL 165 W	12	25	26.5	15	28	282	212	70	6 x 13 x 16	4	13.8	10	0.63	204 W
3	3	KL 166 W	16	32	31.5	19	34	332	252	80	6 x 16 x 20	5	18.3	14	1.11	205 W
4	4	KL 167 W	20	40	39.5	23	41	474	374	100	6 x 21 x 25	6	22.8	19	2.3	206 W
5	5	KL 168 W	25	50	51.5	29	52.5	623	473	150	6 x 26 x 32	8	28.3	24	5.15	207 W
6	6	KL 169 W	32	63	59.5	36	65	714	514	200	8 x 32 x 38	10	35.3	30	8.65	208 W
7	7	KL 171 W	40	75	59.5	44	80	770	570	200	8 x 32 x 38	12	43.3	36	11.23	209 W
8	8	KL 172 W	50	90	79.5	54	95	900	700	200	8 x 42 x 48	14	53.8	On request	21.6	2010 W

Version left

Version right
