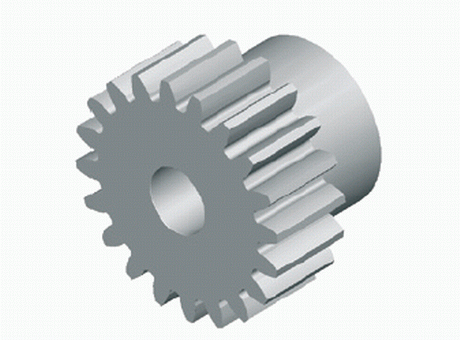

End of Life - Spur gears, Module 3, C45 steel (non-hardened), 20° PA

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Spur gears, straight geared quenched and tempered steel C45 non-hardened, Pressure angle of 20 degrees, Module 3,0
Part number	3012 ST

CAD models

Request for quotation

Product selection

Level of detail

Index	Selector	Order No.	Teeth	Modul (mm)	d (mm)	da (mm)	N (mm)	b (mm)	L (mm)	B (mm)	Tol. B	Material
1	1	3012 ST	12	3	36	42	25	30	50	14	J9	Vergütungsstahl C45
2	2	3013 ST	13	3	39	45	25	30	50	14	J9	Vergütungsstahl C45
3	3	3014 ST	14	3	42	48	25	30	50	14	J9	Vergütungsstahl C45
4	4	3015 ST	15	3	45	51	35	30	50	14	J9	Vergütungsstahl C45
5	5	3016 ST	16	3	48	54	35	30	50	14	J9	Vergütungsstahl C45
6	6	3017 ST	17	3	51	57	42	30	50	14	J9	Vergütungsstahl C45
7	7	3018 ST	18	3	54	60	45	30	50	14	J9	Vergütungsstahl C45
8	8	3019 ST	19	3	57	63	45	30	50	14	J9	Vergütungsstahl C45
9	9	3020 ST	20	3	60	66	45	30	50	14	J9	Vergütungsstahl C45
10	10	3021 ST	21	3	63	69	45	30	50	14	J9	Vergütungsstahl C45
11	11	3022 ST	22	3	66	72	50	30	50	14	J9	Vergütungsstahl C45
12	12	3023 ST	23	3	69	75	50	30	50	14	J9	Vergütungsstahl C45
13	13	3024 ST	24	3	72	78	50	30	50	14	J9	Vergütungsstahl C45
14	14	3025 ST	25	3	75	81	60	30	50	14	J9	Vergütungsstahl C45
15	15	3027 ST	27	3	81	87	60	30	50	14	J9	Vergütungsstahl C45
16	16	3030 ST	30	3	90	96	60	30	50	14	J9	Vergütungsstahl C45
17	17	3035 ST	35	3	105	111	80	30	50	14	J9	Vergütungsstahl C45
18	18	3038 ST	38	3	114	120	80	30	50	14	J9	Vergütungsstahl C45
19	19	3040 ST	40	3	120	126	80	30	50	14	J9	Vergütungsstahl C45
