End of Life - Sliding Carriage GS

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Sliding Carriage GS
Part number	GS 16
Note	160 mm

CAD models

Request for quotation

Product selection

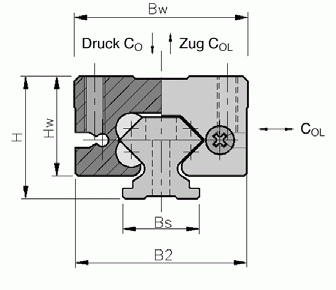

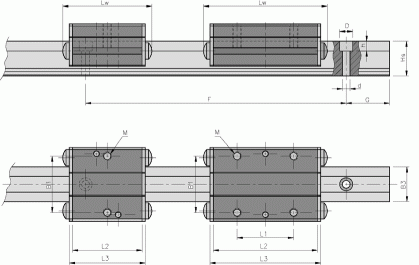

Index	Selector	Order No.	Bs (mm)	Hs (mm)	B3 (mm)	F (mm)	H (mm)	d x D x h (mm)	Weight (kg/m)
1	1	GS 16	15	16	16	120	24	3,5x6x4,5	0.47
2	2	GS 16U	15	16	16		24		0.47
3	3	GS 24	23	22.6	24	120	33	7x11x7	1.059
4	4	GS 24U	23	22.6	24		33		1.059
5	5	GS 35	34	33.4	35	160	48	9x15x12	2.27
6	6	GS 35U	34	33.4	35		48		2.27

Length (mm)

Contact the supplier
