End of Life - Rubber-metal Buffer, Standard

Manufacturer	Technische Antriebselemente GmbH - Germany

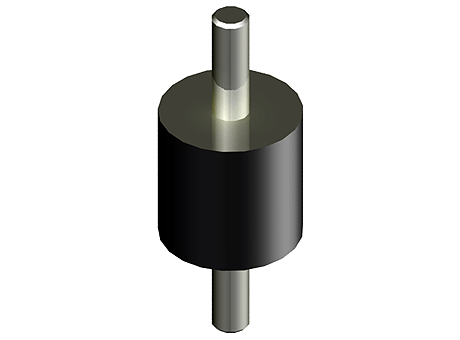

Description	Rubber-metal Buffer, Standard Version
Part number	15.15 A

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D (mm)	H (mm)	F Pressure (N)	M	I (mm)	S (mm)	S1 (mm)	Plane (cm²)	Shore
1	1	15.15 A	15	15	40	M 4	12	2	0	2.36	55
2	2	20.15 A	20	15	90	M 6	19	2	0	3.14	55
3	3	25.20 A	25	20	150	M 6	15	2	0	4.91	55
4	4	25.30 A	25	30	150	M 6	15	2	0	4.91	55
5	5	30.20 A	30	20	210	M 8	20	2	0	7.07	55
6	6	30.30 A	30	30	210	M 8	20	2	0	7.07	55
7	7	40.30 A	40	30	300	M 8	20	2	0	12.57	55
8	8	40.40 A	40	40	300	M 8	20	2	0	12.57	55
9	9	50.30 A	50	30	600	M 10	25	2	0	19.64	55
10	10	50.40 A	50	40	600	M 10	25	2	0	19.64	55
11	11	70.45 A	70	45	1000	M 10	37	3	0	38.47	55
12	12	75.40 A	75	40	1200	M 12	37	3	0	44.18	55
13	13	75.50 A	75	50	1200	M 12	37	3	0	44.18	55
14	14	100.40 A	100	40	2000	M 16	42	3	0	78.54	55
15	15	100.60 A	100	60	2000	M 16	42	3	0	78.54	55
16	16	100.75 A	100	75	2000	M 16	42	3	0	78.54	55
17	17	150.55 A	150	55	6000	M 16	42	3	0	176.62	55
18	18	150.75 A	150	75	6000	M 16	42	3	0	176.62	55
19	19	15.15 B	15	15	40	M 4	12	2	4.5	2.36	55
20	20	20.15 B	20	15	90	M 6	19	2	5.5	3.14	55
21	21	25.20 B	25	20	150	M 6	15	2	6.5	4.91	55
22	22	25.30 B	25	30	150	M 6	15	2	6.5	4.91	55
23	23	30.20 B	30	20	210	M 8	20	2	9.5	7.07	55
24	24	30.30 B	30	30	210	M 8	20	2	9.5	7.07	55
25	25	40.30 B	40	30	300	M 8	20	2	9.5	12.57	55
26	26	40.40 B	40	40	300	M 8	20	2	9.5	12.57	55
27	27	50.30 B	50	30	600	M 10	25	2	10.5	19.64	55
28	28	50.40 B	50	40	600	M 10	25	2	10.5	19.64	55
29	29	70.45 B	70	45	1000	M 10	37	3	12.5	38.47	55
30	30	75.40 B	75	40	1200	M 12	37	3	12.5	44.18	55
31	31	75.50 B	75	50	1200	M 12	37	3	12.5	44.18	55
32	32	100.40 B	100	40	2000	M 16	42	3	16.5	78.54	55
33	33	100.60 B	100	60	2000	M 16	42	3	16.5	78.54	55
34	34	100.75 B	100	75	2000	M 16	42	3	16.5	78.54	55
35	35	150.55 B	150	55	6000	M 16	42	3	16.5	176.62	55
36	36	150.75 B	150	75	6000	M 16	42	3	16.5	176.62	55
37	37	15.15 C	15	15	40	M 4	0	2	4.5	2.36	55
38	38	20.15 C	20	15	90	M 6	0	2	5.5	3.14	55
39	39	25.20 C	25	20	150	M 6	0	2	6.5	4.91	55
40	40	25.30 C	25	30	150	M 6	0	2	6.5	4.91	55
41	41	30.20 C	30	20	210	M 8	0	2	9.5	7.07	55
42	42	30.30 C	30	30	210	M 8	0	2	9.5	7.07	55
43	43	40.30 C	40	30	300	M 8	0	2	9.5	12.57	55
44	44	40.40 C	40	40	300	M 8	0	2	9.5	12.57	55
45	45	50.30 C	50	30	600	M 10	0	2	10.5	19.64	55
46	46	50.40 C	50	40	600	M 10	0	2	10.5	19.64	55
47	47	70.45 C	70	45	1000	M 10	0	3	12.5	38.47	55
48	48	75.40 C	75	40	1200	M 12	0	3	12.5	44.18	55
49	49	75.50 C	75	50	1200	M 12	0	3	12.5	44.18	55
50	50	100.40 C	100	40	2000	M 16	0	3	16.5	78.54	55
51	51	100.60 C	100	60	2000	M 16	0	3	16.5	78.54	55
52	52	100.75 C	100	75	2000	M 16	0	3	16.5	78.54	55
53	53	150.55 C	150	55	6000	M 16	0	3	16.5	176.62	55
54	54	150.75 C	150	75	6000	M 16	0	3	16.5	176.62	55
55	55	15.15 D	15	15	40	M 4	12	2	0	2.36	55
56	56	20.15 D	20	15	90	M 6	19	2	0	3.14	55
57	57	25.20 D	25	20	150	M 6	15	2	0	4.91	55
58	58	25.30 D	25	30	150	M 6	15	2	0	4.91	55
59	59	30.20 D	30	20	210	M 8	20	2	0	7.07	55
60	60	30.30 D	30	30	210	M 8	20	2	0	7.07	55
61	61	40.30 D	40	30	300	M 8	20	2	0	12.57	55
62	62	40.40 D	40	40	300	M 8	20	2	0	12.57	55
63	63	50.30 D	50	30	600	M 10	25	2	0	19.64	55
64	64	50.40 D	50	40	600	M 10	25	2	0	19.64	55
65	65	70.45 D	70	45	1000	M 10	37	3	0	38.47	55
66	66	75.40 D	75	40	1200	M 12	37	3	0	44.18	55
67	67	75.50 D	75	50	1200	M 12	37	3	0	44.18	55
68	68	100.40 D	100	40	2000	M 16	42	3	0	78.54	55
69	69	100.60 D	100	60	2000	M 16	42	3	0	78.54	55
70	70	100.75 D	100	75	2000	M 16	42	3	0	78.54	55
71	71	150.55 D	150	55	6000	M 16	42	3	0	176.62	55
72	72	150.75 D	150	75	6000	M 16	42	3	0	176.62	55
73	73	15.15 E	15	15	40	M 4	0	2	4.5	2.36	55
74	74	20.15 E	20	15	90	M 6	0	2	5.5	3.14	55
75	75	25.20 E	25	20	150	M 6	0	2	6.5	4.91	55
76	76	25.30 E	25	30	150	M 6	0	2	6.5	4.91	55
77	77	30.20 E	30	20	210	M 8	0	2	9.5	7.07	55
78	78	30.30 E	30	30	210	M 8	0	2	9.5	7.07	55
79	79	40.30 E	40	30	300	M 8	0	2	9.5	12.57	55
80	80	40.40 E	40	40	300	M 8	0	2	9.5	12.57	55
81	81	50.30 E	50	30	600	M 10	0	2	10.5	19.64	55
82	82	50.40 E	50	40	600	M 10	0	2	10.5	19.64	55
83	83	70.45 E	70	45	1000	M 10	0	3	12.5	38.47	55
84	84	75.40 E	75	40	1200	M 12	0	3	12.5	44.18	55
85	85	75.50 E	75	50	1200	M 12	0	3	12.5	44.18	55
86	86	100.40 E	100	40	2000	M 16	0	3	16.5	78.54	55
87	87	100.60 E	100	60	2000	M 16	0	3	16.5	78.54	55
88	88	100.75 E	100	75	2000	M 16	0	3	16.5	78.54	55
89	89	150.55 E	150	55	6000	M 16	0	3	16.5	176.62	55
90	90	150.75 E	150	75	6000	M 16	0	3	16.5	176.62	55
