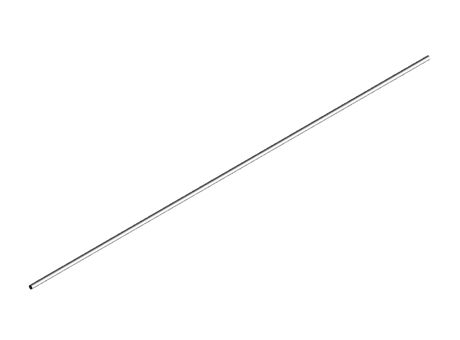

End of Life - Precision shafts WV, hardened, polished and chrome-plated, Cf53 heat treated steel, hardness: 55 - 62 ±2 HRC, plating layer thickness: 5 - 20 µm

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Precision shafts WV, hardened, polished and chrome-plated, Cf53 or similar heat treated steel, hardness: 55 - 62 ±2 HRC, plating layer thickness: 5 - 20 µm
Part number	WV3

CAD models

Product selection

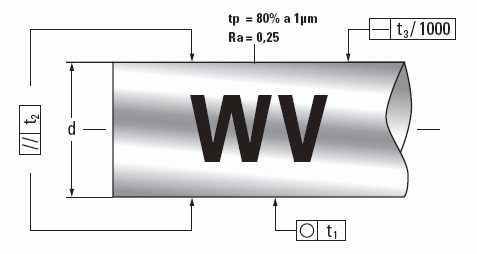

Index	Selector	Order no.	d (mm)	Weight (kg/m)	L (mm)	Rht (max) DIN 6773 (mm)	ISO h7 (µm)	t1 (µm)	t2 (µm)	t3 (µm)
1	1	WV3	3	0.06	1100	0,4-0,6	0-10	6	10	300
2	2	WV5	5	0.16	3000	0,5-0,8	0-12	6	10	300
3	3	WV6	6	0.23	6000	0,5-0,8	0-12	6	10	300
4	4	WV8	8	0.4	6000	0,6-0,9	0-15	6	10	300
5	5	WV10	10	0.62	6000	0,7-1,0	0-15	6	10	300
6	6	WV12	12	0.89	6000	0,8-1,2	0-18	8	12	200
7	7	WV14	14	1.21	6000	0,9-1,3	0-18	8	12	200
8	8	WV15	15	1.39	6000	1,0-1,4	0-18	8	12	200
9	9	WV16	16	1.58	6000	1,1-1,5	0-18	8	12	200
10	10	WV18	18	1.98	6000	1,1-1,5	0-18	8	12	200
11	11	WV20	20	2.47	6000	1,2-1,5	0-21	9	12	100
12	12	WV24	24	3.55	6000	1,4-1,6	0-21	9	12	100
13	13	WV25	25	3.85	6000	1,5-1,7	0-21	9	12	100
14	14	WV30	30	5.55	6000	1,5-1,9	0-21	9	12	100
15	15	WV32	32	6.3	6000	1,5-1,9	0-25	11	15	100
16	16	WV35	35	7.55	6000	1,5-1,9	0-25	11	15	100
17	17	WV40	40	9.87	6000	1,6-2,0	0-25	11	15	100
18	18	WV50	50	15.4	6000	2,2-2,6	0-25	11	15	100
19	19	WV60	60	22.2	6000	2,2-2,6	0-30	12	15	100
20	20	WV70	70	30.2	6000	2,2-2,6	0-30	12	15	100
21	21	WV80	80	39.5	6000	2,2-2,6	0-30	12	15	100
22	22	WV90	90	49.9	6000	2,2-3,2	0-35	14	17	100
23	23	WV100	100	61.7	6000	2,2-3,2	0-35	14	17	100
