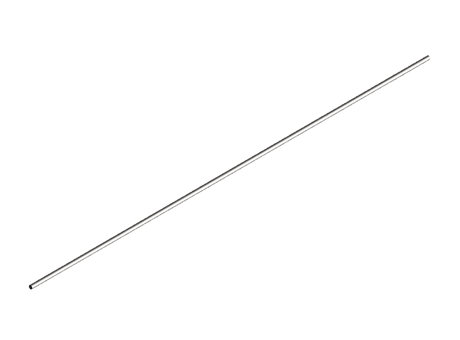

End of Life - Precision shafts WRA, corrosion-resistant, hardened and polished, X90CrMoV18 [1.4112], Hardness: 55 ± 2 HRC

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Precision shafts WRA, corrosion-resistant, hardened and polished, X90CrMoV18 [1.4112], Hardness: 55 ± 2 HRC
Part number	WRA5

CAD models

Request for quotation

Product selection

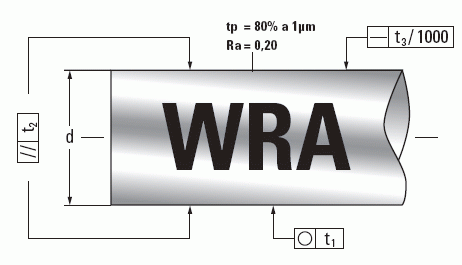

Index	Selector	Order no.	d (mm)	Weight (kg/m)	L (mm)	Rht (max) DIN 6773 (mm)	ISO h6 (µm)	t1 (µm)	t2 (µm)	t3 (µm)
1	1	WRA5	5	0.15	2100	0,5-0,8	0- 8	4	5	300
2	2	WRA6	6	0.22	3100	0,5-0,8	0- 8	4	6	300
3	3	WRA8	8	0.4	6000	0,6-0,9	0- 9	4	6	200
4	4	WRA10	10	0.62	6000	0,7-1,0	0- 9	4	6	200
5	5	WRA12	12	0.89	6000	0,8-1,2	0-11	5	8	200
6	6	WRA14	14	1.21	6000	0,9-1,3	0-11	5	8	100
7	7	WRA15	15	1.39	6000	1,1-1,5	0-11	5	8	100
8	8	WRA16	16	1.58	6000	1,1-1,5	0-11	5	8	100
9	9	WRA20	20	2.47	6000	1,2-1,6	0-13	6	9	100
10	10	WRA25	25	3.85	6000	1,5-1,7	0-13	6	9	100
11	11	WRA30	30	5.55	6000	1,5-1,9	0-13	6	9	100
12	12	WRA40	40	9.87	6000	2,5-3,0	0-16	7	11	100
13	13	WRA50	50	15.41	6000	2,7-3,2	0-16	7	11	100
14	14	WRA60	60	22.2	6000	2,9-3,3	0-19	8	13	100
