End of Life - motor-flange-adapter type FC

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	motor-flange-adapter type FC
Part number	FC19

CAD models

Request for quotation

Product selection

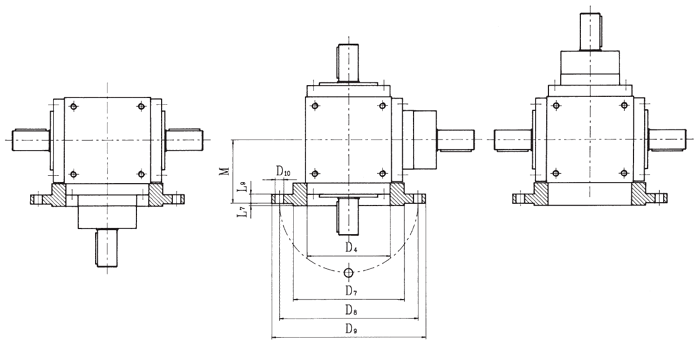

Index	Selector	order number	D4 (mm)	D7 (mm)	D8 (mm)	D9 (mm)	D10 (mm)	L7 (mm)	L9 (mm)	M (mm)
1	1	FC19	86	110	130	160	9	3.5	12	70
2	2	FC24	105	130	165	200	11	3.5	13	85
3	3	FC32	135	180	215	250	14	4	15	105
4	4	FC38	165	230	265	300	14	4	15	125
5	5	FC42	190	230	265	300	14	4	15	145
6	6	FC55	230	250	300	350	18	5	18	175
7	7	FC75	300	350	400	450	18	5	25	230
