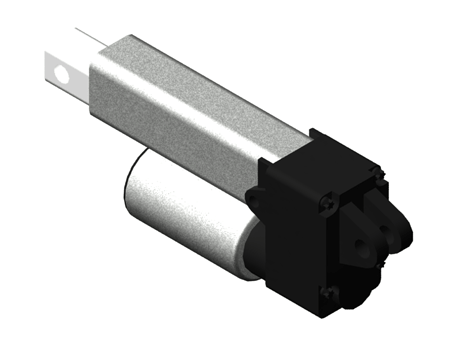

End of Life - Mini Actuator HG120, max. Lifting Force 1200 N

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Mini Actuator MHG100/12, MHG100/50, axial moved Piston Rod, max. Lifting Force 1200 N
Part number	MHG 120/1-12-5

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Spindle	Reduction	DC Motor	Max. Lifting Force (N)	Idle speed (mm/s)
1	1	MHG 120/1-12	Tr 10x3	1:27,14	12-24V	1000	0-10
2	2	MHG 120/1-36	Tr 10x3	1:27,14	>24-36V	1200	0-12
3	3	MHG 120/2-12	Tr 10x6	1:27,14	12-24V	500	0-20
4	4	MHG 120/2-36	Tr 10x6	1:27,14	>24-36V	600	0-25
5	5	MHG 120/3-12	Tr 12x3	1:27,14	12-24V	1000	0-10
6	6	MHG 120/3-36	Tr 12x3	1:27,14	>24-36V	1200	0-12
7	7	MHG 120/4-12	Tr 12x12	1:27,14	12-24V	400	0-40
8	8	MHG 120/4-36	Tr 12x12	1:27,14	>24-36V	500	0-45
9	9	MHG 120/5-12	Tr 12x16	1:27,14	12-24V	300	0-45
10	10	MHG 120/5-36	Tr 12x16	1:27,14	>24-36V	400	0-50

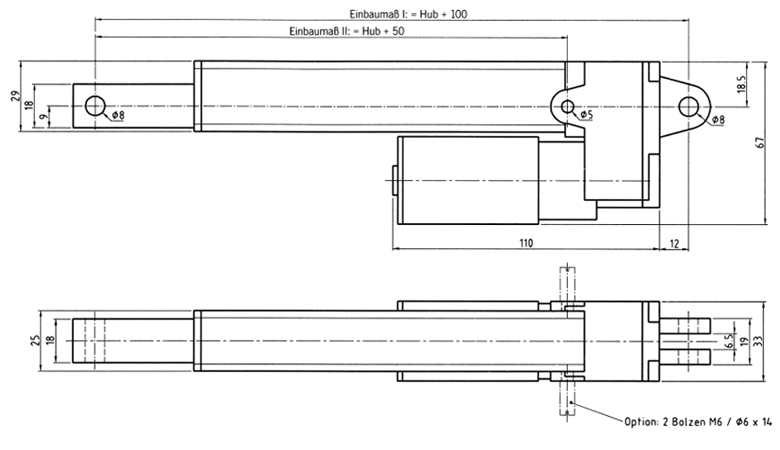

Stroke (mm)

Piston Rod extended (mm)
