End of Life - Mini Actuator HG LAM, max. Lifting Force 10 N

Manufacturer	Technische Antriebselemente GmbH - Germany

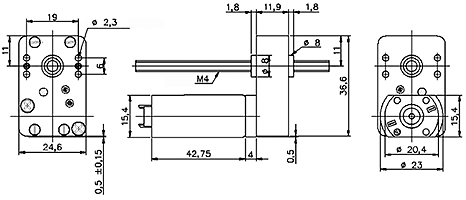

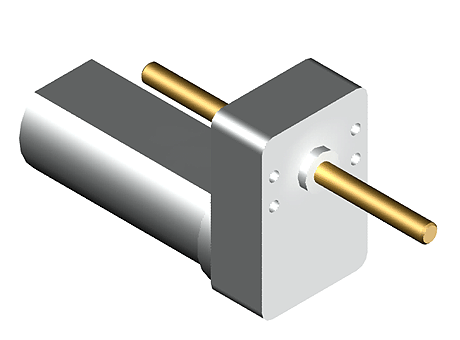

Description	Mini Actuator HG LAM, axial moved Piston Rod, max. Lifting Force 10 N
Part number	MHG LAM 05 10 0.5

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Reduction	Max., Holding Load (N)	Max. Lifting Force (mm)	Stroke Lenght	Speed
1	1	MHG LAM 05	5:1	100	10	10-200	0,5-5
2	2	MHG LAM 10	10:1	100	10	10-200	0,5-5
3	3	MHG LAM 20	20:1	100	10	10-200	0,5-5
4	4	MHG LAM 50	50:1	100	10	10-200	0,5-5
5	5	MHG LAM 100	100:1	100	10	10-200	0,5-5

Stroke Lenght (mm)

Speed (m/s)

Spindle position (mm)

Contact the supplier
