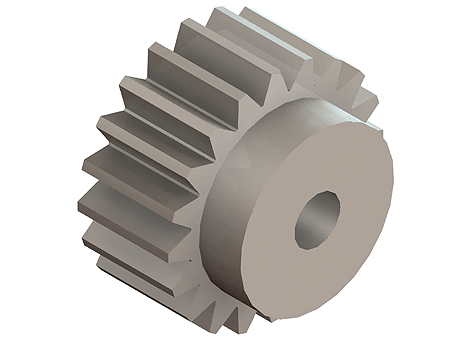

End of Life - Measuring Pinion, 10mm Pitch, 20° PA

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	Measuring Pinion, straight geared, Pressure Angle 20°, Pitch 7,5 mm
Part number	24-Mess10020

CAD models

Product selection

Index	Selector	Order No.	Tooth Quantity	Bore H7 (mm)	Tooth Quality	Tooth Flank Machining	1 Turn = way (mm)	max. torque with non-hardened Measuring Rack (N.m)	max. torque with hardened Measuring Rack (N.m)	Material	Weight (kg)
1	1	24-Mess10020	20	15	6 f24	gehärtet u. geschliffen	200	140	332	1.7131 [16 Mn Cr 5]	1
