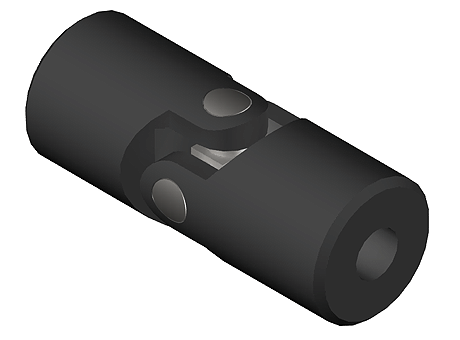

End of Life - HUCO-POL® Plastic Universal Joint, (Single), Type A

Manufacturer	Technische Antriebselemente GmbH - Germany
Description	HUCO-POL® plastic universal joint, type A, single
Part number	E6A3-3

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	D (mm)	L (mm)	F (mm)	B1+B2 Ø min (mm)	B1+B2 Ø max (mm)	L2 (mm)	Pulse torque (N.m)	Static rupture torque (N.m)	Torsional stiffness (Nm/rad)	J kgm²x10-8	Gewicht (g)	Max. extension ang ±0	Max shaft load (N)
1	1	E6A	7.1	19.1	3.3	3	4.76	5.3	0.11	0.45	2.9	0.3	0.7	45	18
2	2	E9A	11.1	28.5	4.3	4	6.35	8.6	0.36	1.9	8.4	4	2.7	45	38
3	3	E13A	14.3	35.6	5.6	6	8	10.4	0.85	4.5	18	14.3	5.7	45	67
4	4	E16A	17.5	53.3	8.9	8	10	15.2	1.6	6.8	34	32.3	12.2	45	98

B1 (mm)

B2 (mm)
